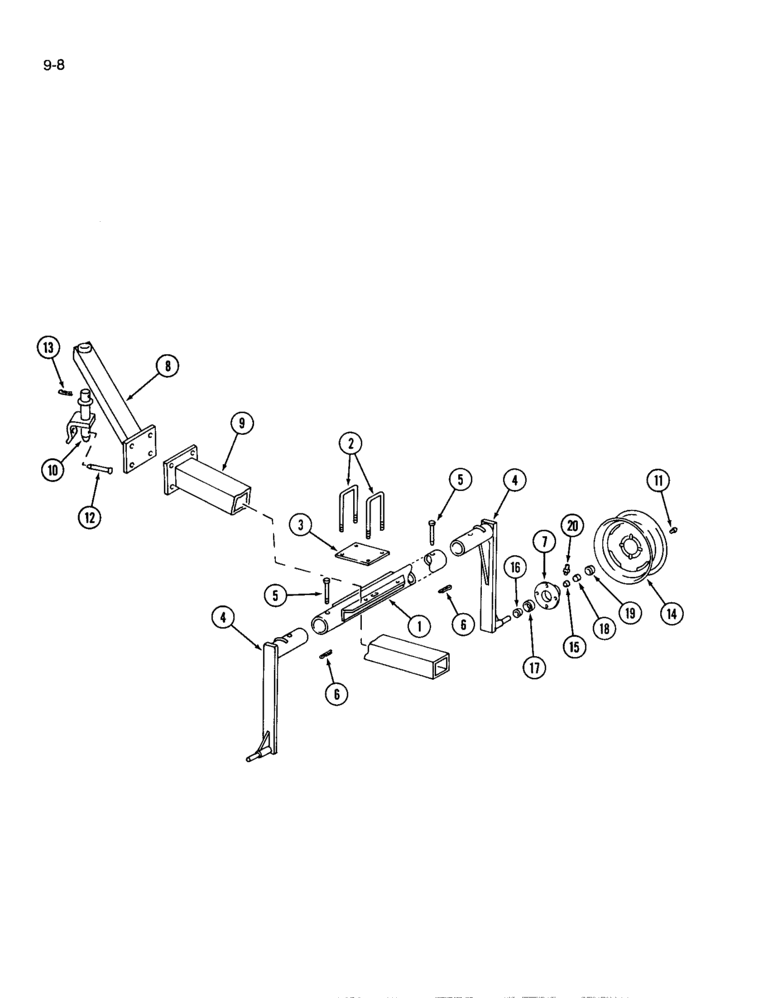

Запчасти Case IH 146 (9-08) - TRANSPORT ATTACHMENT, FOR 6 AND 8 ROW CULTIVATORS

1

492986R2

TUBE ASSEMBLY - transport

1шт.

2

493839R1

BOLT,7/8" - 9 x 9"

U-BOLT - transport tube

2шт.

495-81058

WASHER,29/32" x 1 1/2" x .179"

- 29/32 x 1-1/2 x 3/16 inch

4шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

3

493838R1

PLATE

- reinforcing, 7 x 7 inch

1шт.

541769R1

PIN

- 7/8 inch diameter

1шт.

4

542311R1

AXLE

ASSEMBLY - wheel

2шт.

5

486220R1

PIN

- transport tube, pointed

2шт.

6

486830R1

COTTER PIN

PIN - quick attachable, cotter

2шт.

7

472220R2

HUB

- wheel, with fitting

2шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- hardened, 25/32 x 1-1/4 x 3/32 inch

2шт.

69442D

NUT

- hex, slotted, 3/4 inch

2шт.

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

8

542314R1

TUBE

ASSEMBLY - hitch

1шт.

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 x 2-1/4 inch

4шт.

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

425-1012

NUT,3/4"-10, G5

4шт.

495-81098

WASHER,2 1/32" x 2 3/4" x .120"

- 2-1/32 x 2-3/4 x 3/32 inch

1шт.

9

REF

INSTRUCTION

FRAME ASSEMBLY - main (See Page 9-3)

1шт.

10

542316R1

BRACKET

ASSEMBLY - pivot

1шт.

11

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

- hex, conical

8шт.

12

542319R1

PIN

- pointed

1шт.

13

473865R91

LINCH PIN

PIN ASSEMBLY - pivot

1шт.

20465R1

LOCK PIN,1/4" x 3 1/2", Slotted

Pin, 1/4" x 3 1/2", Slotted

1шт.

486830R1

COTTER PIN

PIN - quick attachable, cotter

1шт.

14

T25852

RIM

WHEEL - 14 inch (Replaces 463036R1)

2шт.

14

455169R92

WHEEL

- 15 inch

2шт.

15

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - bearing, outer

2шт.

15

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

16

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, inner

2шт.

17

651817R1

BEARING CUP

CUP - bearing, inner

2шт.

17

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

18

651814R1

BEARING CUP

CUP - bearing, outer

2шт.

19

651194R1

CAP

- wheel bearing, hub

2шт.

20

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4 inch NF

2шт.

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- wheel hub, oil

2шт.

472222R1

SLEEVE

- wear, oil seal

2шт.
