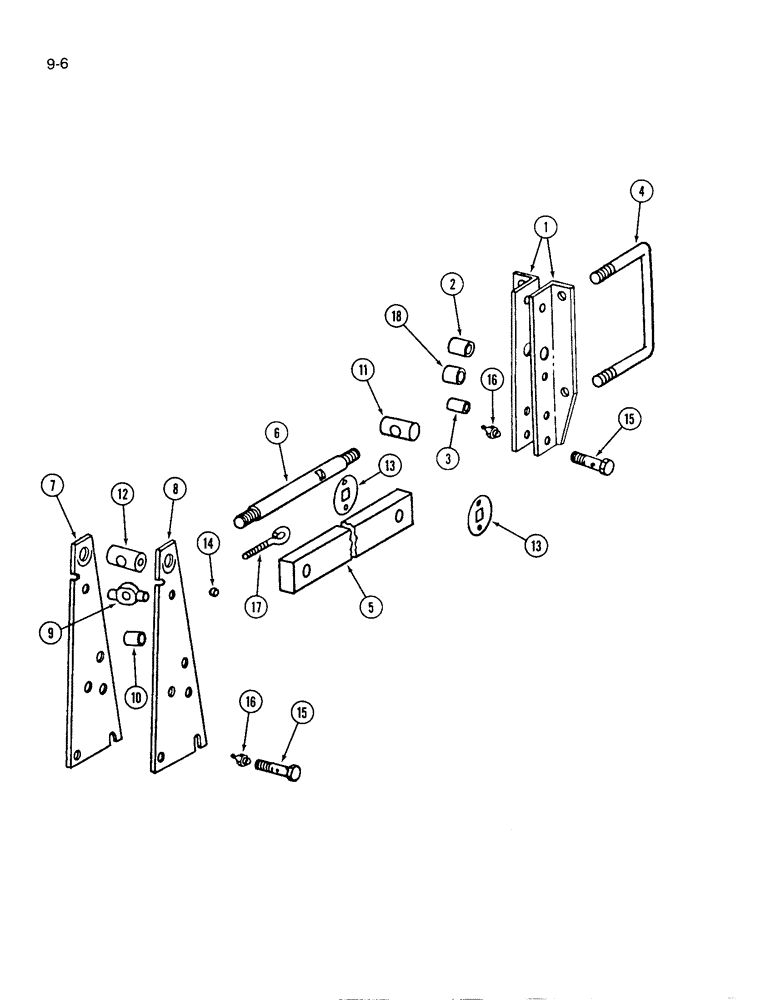

Запчасти Case IH 146 (9-06) - PARALLEL LINKAGE

1

542322R2

ANGLE

- bracket, left

1шт.

1

542323R2

ANGLE

- bracket, right

1шт.

424-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 2

- hex, 5/8 x 3 inch

1шт.

424-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 2

- hex, 5/8 x 3-1/4 inch

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

424-848

BOLT,Hex, 1/2" - 13 x 3", Gr 2

- hex, 1/2 x 3 inch

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

424-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 2

- hex, 3/4 x 3-1/4 inch

1шт.

24663R1

LOCK NUT,3/4"-10, G5

NUT - lock, 3/4 inch

1шт.

2

492939R1

SPACER

- lower

1шт.

3

492941R1

SPACER

- middle

1шт.

4

542324R2

U-BOLT,U, 3/4" - 10 x 214.90mm

- linkage (8 row cultivators)

16шт.

4

541654R1

BOLT,U, 3/4" - 10 x 168.90mm

U-BOLT - linkage (4 row cultivators)

8шт.

4

541654R1

BOLT,U, 3/4" - 10 x 168.90mm

U-BOLT - linkage (6 row cultivators)

12шт.

429-1014

NUT,7/8"-9, G8

- hex, 7/8 inch NC, Grade 8 (Quantity of 2 per U-bolt)

1шт.

5

545405R1

BAR

- lower parallel link

1шт.

6

523448R1

ROD

- upper link

1шт.

7

487225R1

PLATE

- tool bar, tapped support

1шт.

8

487226R1

PLATE

- tool bar, untapped support

1шт.

9

487235R2

PIVOT

- trunnion

1шт.

10

483284R1

SPACER

- support

1шт.

424-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 2

- hex, 1/2 x 2-3/4 inch

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

11

483285R1

PIVOT ASSY.

SWIVEL - upper link, front

1шт.

12

483286R1

PIVOT ASSY.

SWIVEL - upper link, rear

1шт.

13

486998R1

WASHER,20.63mm ID x 76.2mm OD x 1.52mm Thk

- lower pivot bearing

2шт.

14

522591R1

PLUG

- bolt locking

1шт.

424-816

BOLT,Hex, 1/2" - 13 x 1", Gr 2

- hex, 1/2 x 1 inch

1шт.

21950R1

HEADED PIN,3/4" x 2 1/2"

PIN - headed, 3/4 x 2-1/2 inch

1шт.

432-1618

COTTER PIN,1/4" x 1 1/8"

Pin, Split (Cotter), 1/4" x 1 1/8"

1шт.

15

545406R1

BOLT (SPREADER),Hex, 3/4" - 10 x 3", Cl 1

BOLT - lower link, pivot

2шт.

24663R1

LOCK NUT,3/4"-10, G5

NUT - lock, 3/4 inch

2шт.

16

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING - lubrication, 3/16 inch, straight (In rear of lower parallel link)

1шт.

16

19700R91

FITTING

- lubrication, 3/16 inch, 45 degree (In front of lower parallel link)

1шт.

17

542321R1

BOLT,3/8" - 16 x 4"

- hook

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

18

492949R1

SPACER

- upper

1шт.
