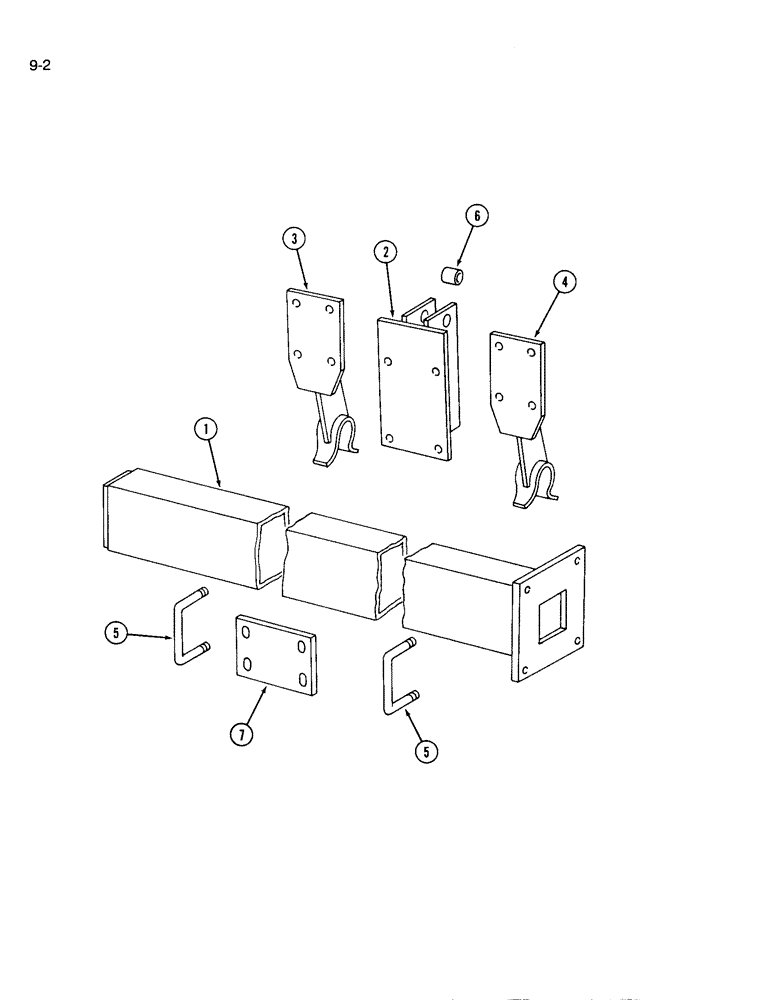

Запчасти Case IH 146 (9-02) - FRAME

1

542154R2

FRAME

ASSEMBLY - main, 7 x 7 inch (8 row cultivators)

1шт.

1

492943R3

TUBE

FRAME ASSEMBLY - main, 5 x 7 inch (6 row cultivators)

1шт.

2

542299R1

SUPPORT

MAST ASSEMBLY - hitch

1шт.

413-12152

BOLT,Hex, 3/4" - 10 x 9-1/2", Gr 5

(8 row cultivators) Hex, 3/4"-10 x 9 1/2", G5

4шт.

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- hex, 3/4 NC x 7-1/2 inch (6 row cultivators)

4шт.

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

425-1012

NUT,3/4"-10, G5

4шт.

3

542302R1

BRACKET ASSEMBLY - hitch, left

1шт.

4

542303R1

BRACKET

ASSEMBLY - hitch, right

1шт.

5

493841R1

U-BOLT

- 7/8 inch NC (8 row cultivators)

4шт.

5

493468R1

BOLT,7/8" - 9 x 6 1/2"

U-BOLT - 7/8 inch NC (4 and 6 row cultivators)

4шт.

429-1014

NUT,7/8"-9, G8

- hex, 7/8 inch NC, Grade 8

4шт.

6

462425R1

SPACER

- upper link

1шт.

424-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 2

- 3/4 x 4-1/4 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

1шт.

7

542306R1

PLATE

- mast

1шт.
