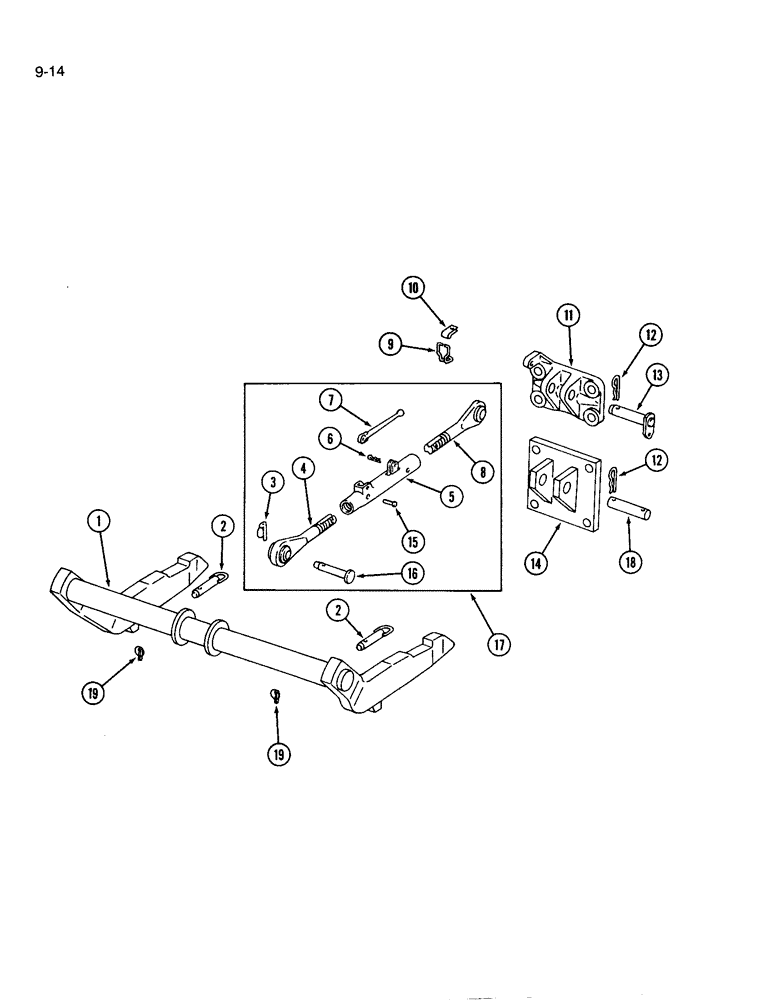

Запчасти Case IH 146 (9-14) - TWO POINT FAST HITCH

1

483567R91

BEAM

ASSEMBLY - coupling

1шт.

2

113225C1

PIN

ASSEMBLY - hitch

2шт.

3

517758R91

SPLIT PIN/SAFETY PIN

PIN - implement pin retaining

1шт.

4

393459R12

STRUT

SCREW ASSEMBLY - left thread

1шт.

22061R1

PIN - coiled spring, 1/4 x 1-1/8 inch

1шт.

5

400908R1

TURNBUCKLE

- upper link

1шт.

6

520175R1

CLIP

PIN - quick attachable, cotter

1шт.

7

392204R1

HANDLE

- upper link turnbuckle

1шт.

8

393460R12

SCREW

ASSEMBLY - right thread

1шт.

22061R1

PIN - coiled spring, 1/4 x 1-1/8 inch

1шт.

9

378403R1

ELECTRICAL WIRE

BRACKET - upper link storage

1шт.

10

378404R1

FASTENER

CLIP - bracket

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

11

389372R41

BRACKET

ASSEMBLY - upper link (For use with F-656 tractor)

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 x 2 inch, Grade 5

4шт.

12

520175R1

CLIP

PIN - quick attachable cotter

1шт.

13

382210R11

PIN

- upper link (For use with F-656 tractor)

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

14

473168R91

BRACKET

ASSEMBLY - upper link (Not for use with F-656 tractor)

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 x 2 inch, Grade 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

15

24709R1

HEADED PIN,3/8" x 1 3/4"

PIN, HEADED, 3/8" x 1 3/4"

1шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

1шт.

16

374132R1

PIN

- upper link implement (Replaces 380563R91)

1шт.

17

400907R92

LINK

ASSEMBLY - upper

1шт.

18

473171R1

PIN

- upper link (Not for use with F-656 tractor)

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

19

A30338

PIN

- quick attachable, snap

2шт.
