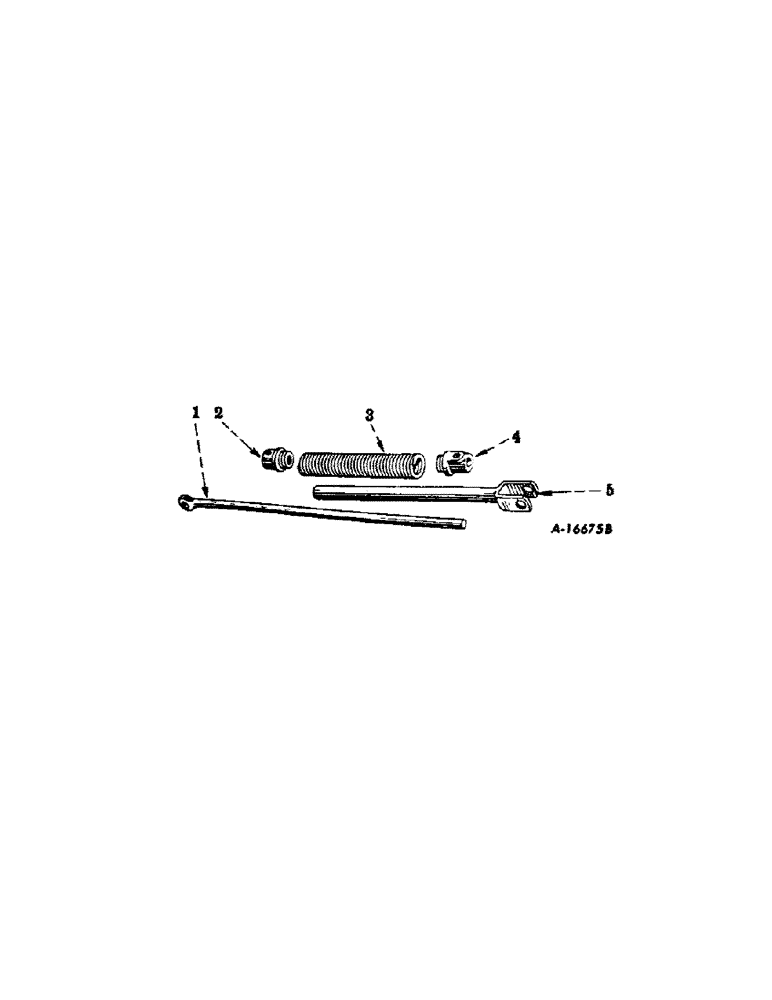

Запчасти Case IH 144T (E-2) - LIFT LINK AND CONNECTIONS (09) - CHASSIS

1

PO28372

ROD

LINK, lift

2шт.

2

514609R91

PLUG

ASSY, spring

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

2шт.

20900R1

SET SCREW

1/2 x 1 znp sq/hd c/pt set

2шт.

3

PO27501

SPRING

lifting link

2шт.

4

514608R91

PLUG

ASSY, spring

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

2шт.

20900R1

SET SCREW

1/2 x 1 znp sq/hd c/pt set

2шт.

5

1254244C1

ROD

PIPE ASSY, lift link

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

22068R1

HEADED PIN,5/8" x 1 13/16"

PIN, 5/8 x 1.812 hd type 1

2шт.
