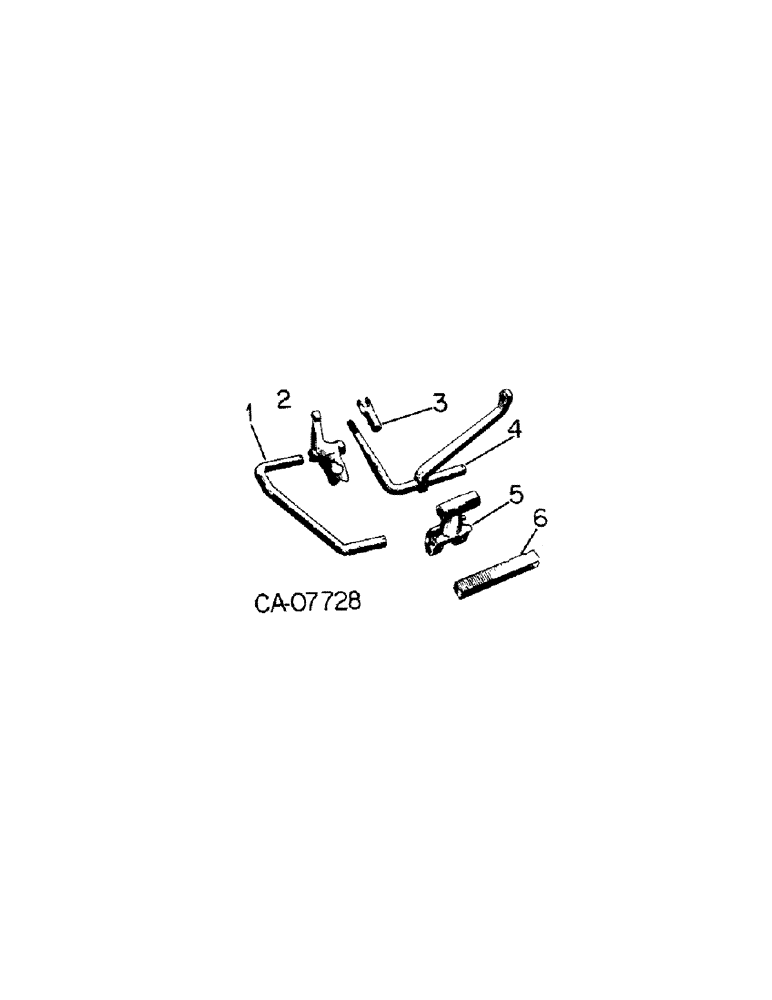

Запчасти Case IH 144T (E-2[B]) - FRAME, RIGHT (09) - CHASSIS

20900R1

SET SCREW

1/2 x 1 znp sq/hd c/pt set

2шт.

3

PO27501

SPRING

lifting link

2шт.

5

1254244C1

ROD

PIPE ASSY, lift link

2шт.

1

1254228C1

ROD

BEAM, gang RH

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

2шт.

608085R1

WASHER

1.406 x 2.000 x .054

2шт.

2

1254221C1

BEAM

tool bar & gang RH

1шт.

18798R1

BOLT,Hex, 7/16"-14 x 2", G2

7/16 x 2 type 1

2шт.

3

516766R1

YOKE

CLEVIS, upper link adjusting

1шт.

512654R1

PIN

5/8 x 2-3/8 spec

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

4

1254227C1

LINK

ASSY, RH

1шт.

516773R1

NUT

special hex. jam

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

608700R1

WASHER

1.281 x 2.000 x .054

1шт.

5

PO3100B

ARM

BEARING, gang RH

1шт.

18941R1

BOLT,1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 sq-hd mach type 1

2шт.

18942R1

BOLT,1/2" - 13 x 3", Gr 2

1/2 x 3 sq-hd mach type 1

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

6

1254222C1

BAR

front frame RH

1шт.

1264077C1

ANGLE

SPACER, bar, for use on 274 tractors with serial no. 8330 and below

1шт.
