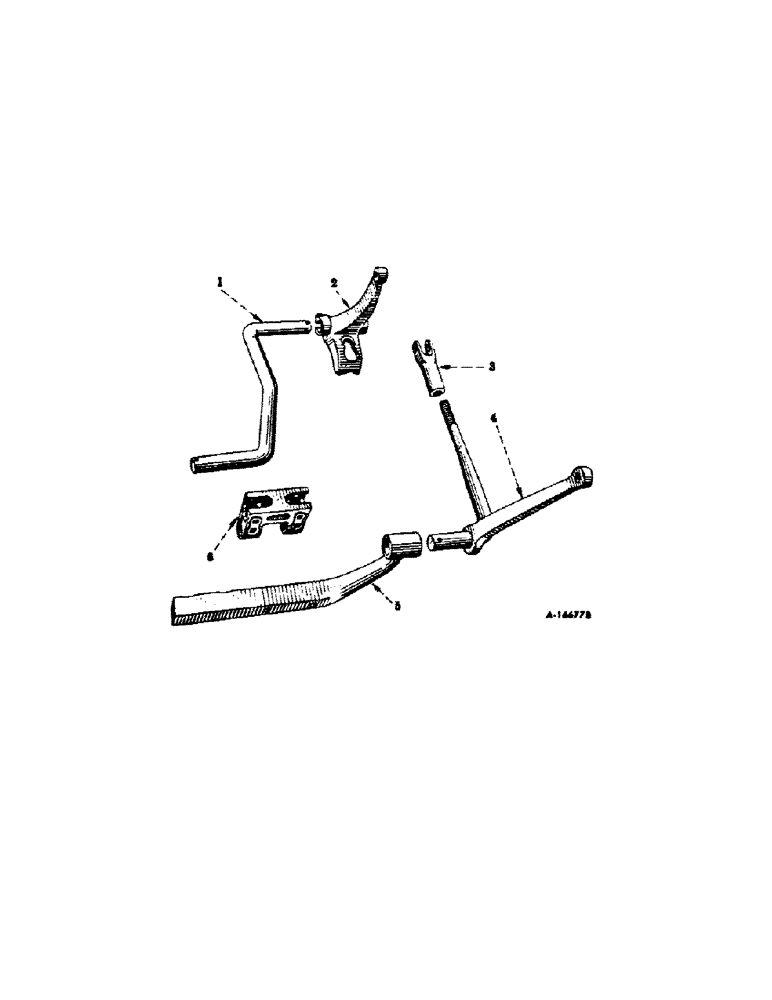

Запчасти Case IH 144T (E-2[A]) - FRAME, LEFT (09) - CHASSIS

1

PO27491A

ROD

BEAM, gang LH

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

2шт.

608085R1

WASHER

1.406 x 2.000 x .054

2шт.

2

1254220C1

BEAM

tool bar & gang Lh

1шт.

18798R1

BOLT,Hex, 7/16"-14 x 2", G2

7/16 x 2 type 1

2шт.

3

516766R1

YOKE

CLEVIS, upper link adjusting

1шт.

512654R1

PIN

5/8 x 2-3/8 spec

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

4

1254226C1

LINK

ASSY, LH

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

608700R1

WASHER

1.281 x 2.000 x 0.54

1шт.

516773R1

NUT

1 in. special hex jam

1шт.

5

1254223C1

BAR

front frame LH

1шт.
