Запчасти Case IH 144T (E-5[A]) - SPRING TRIPS, NO. 16 TYPE (09) - CHASSIS

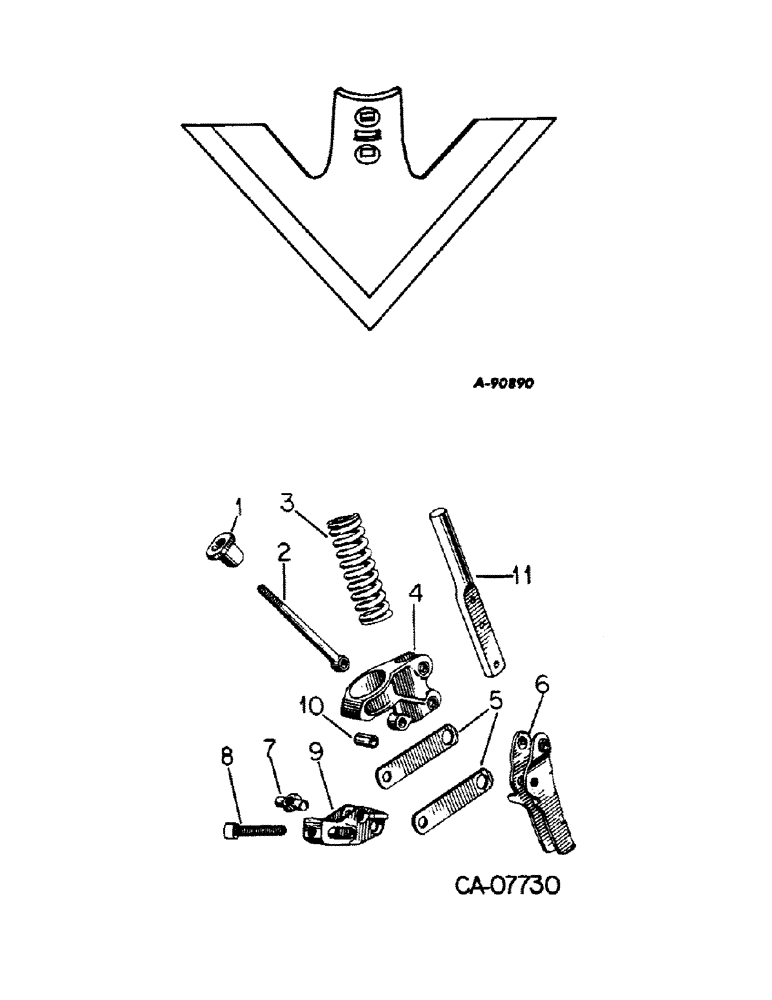

Схема запчастей Case IH 144T - (E-5[A]) - SPRING TRIPS, NO. 16 TYPE (09) - CHASSIS
2
8
3
10
1
4
7
5
11
9
6

Артикул

Название

Примечание

Количество

479005R2

SWEEP

6 in. full x 3/16 in. thick

1шт.

549783R1

PLOW BOLT,Spcl, 7/16" - 14 x 2 1/2"

BOLT, ov-hd plow

2шт.

490648R1

CLIP

sweep bolt

1шт.

271501

SOCKET

NUT, 7/16 type 5

2шт.

479006R2

SWEEP

8 in. full x 3/16 in. thick

1шт.

549783R1

PLOW BOLT,Spcl, 7/16" - 14 x 2 1/2"

BOLT, ov-hd plow

2шт.

490648R1

CLIP

sweep bolt

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5

2шт.

479007R2

SWEEP

10 in. full x 3/16 in. thick

1шт.

549783R1

PLOW BOLT,Spcl, 7/16" - 14 x 2 1/2"

BOLT, ov-hd plow

2шт.

490648R1

CLIP

sweep bolt

1шт.

271501

SOCKET

NUT, 7/16 type 5

2шт.

479011R2

SWEEP

10 in. left half x 3/16 in.

1шт.

549783R1

PLOW BOLT,Spcl, 7/16" - 14 x 2 1/2"

BOLT, ov-hd plow

2шт.

490648R1

CLIP

sweep bolt

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5

2шт.

479012R2

SWEEP

10 in. right half x 3/16 in.

1шт.

549783R1

PLOW BOLT,Spcl, 7/16" - 14 x 2 1/2"

BOLT, ov-hd plow

2шт.

490648R1

CLIP

sweep bolt

1шт.

271501

SOCKET

NUT, 7/16 type 5

2шт.

1

5105BB

NUT

WASHER, spring

1шт.

2

27018B

ROD

spring

1шт.

IH104201

RIVET,Csk, 3/8" x 1 1/2"

3/8 x 1-1/2 pln 90 D c/hd sol

1шт.

3

15282BA

SPRING

1-11/16 OD, 5-1/4 long, 10-1/4 coils

1шт.

4

1694BA

BRACKET

spring

1шт.

45-728

RIVET,But Hd, 7/16" x 1 3/4"

7/16 x 1-3/4 pln but/hd sol

2шт.

5

27016BA

STRIP

STRAP

2шт.

135203

RIVET,Csk, 7/16" x 3/4"

7/16 x 3/4 pln 90 D c/hd sol

2шт.

607891R1

WASHER

.469 x 1.000 x .054

2шт.

6

30811B

SHANK

slotted

1шт.

6

30813B

RIVET

SHANK, special

1шт.

7

27017B

PIVOT

TRUNNION, pivot

1шт.

178374R1

WASHER

.531 x 1.250 x .054

2шт.

8

27015BX

BOLT,Adj, Hex, 1/2" - 13 x 2 3/4", Drilled

W/NUT, adjusting

1шт.

121592

SLOTTED NUT,1/2"-13, G5

NUT, 1/2 slt type 5

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

9

1695BA

YOKE

adjusting

1шт.

46-724

RIVET,Csk, 7/16" x 1 1/2"

7/16 x 1-1/2 pln 90D c/hd sol

1шт.

10

27326BA

SPACER

BUSHING

1шт.

11

518286R1

SUPPORT ASSY.

STANDARD, straight, long 15-3/4

1шт.

11

29923BA

SUPPORT ASSY.

STANDARD, straight, short 11-1/4

1шт.

11

518285R2

SUPPORT ASSY.

STANDARD, straight, short 13-1/4

1шт.

Выбрано товаров: 43
