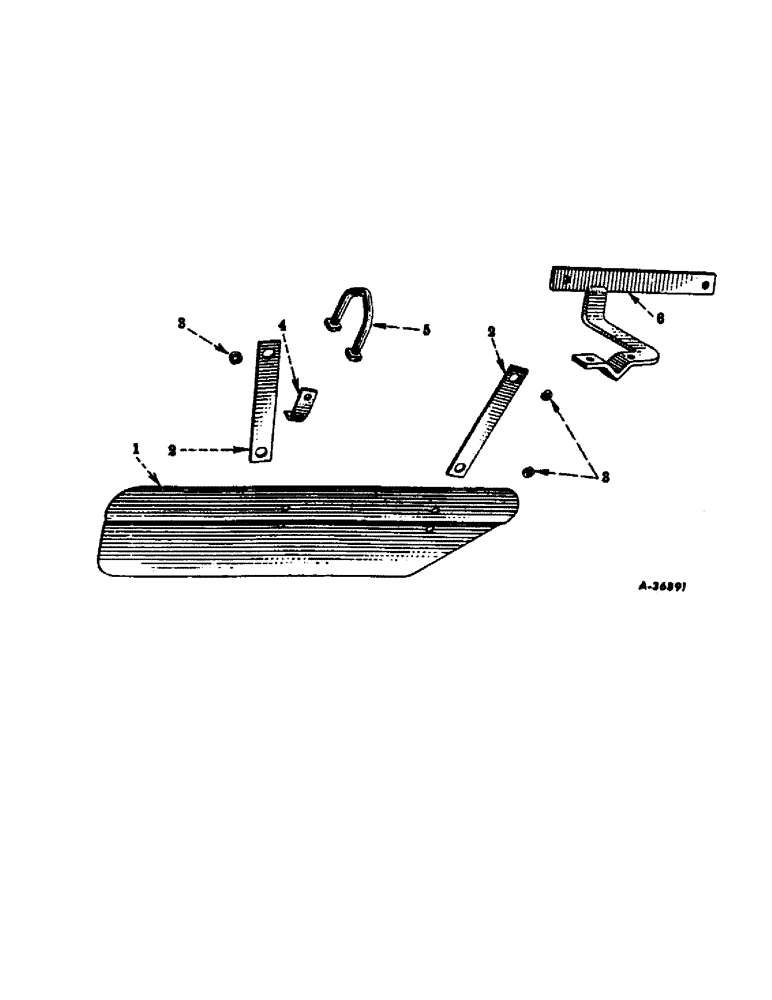

Запчасти Case IH 144T (E-4) - CULTIVATOR SHIELD ATTACHMENT, FOR USE WITH SPRING TRIPS (09) - CHASSIS

1

512007R1

SUPPORT

SHIELD, left

1шт.

1

512008R1

SHIELD

right

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

4шт.

607891R1

WASHER

.469 x 1.000 x .054

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

2

511999R1

LINK

pivot

4шт.

3

512836R1

WASHER

BUSHING, pivot link

8шт.

4

515217R1

SUPPORT

CLIP, adjusting shield

2шт.

5

517711R1

BOLT,3/8" - 16 x 2 1/4"

U-BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

6

517709R11

BRACKET

ASSY, shield attaching LH

1шт.

6

517710R11

BRACKET

ASSY, shield attaching RH

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 type 1

2шт.

607891R1

WASHER

.469 x 1.000 x .054

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

136857

WASHER,Ext Tooth, 7/16"

7/16 ext tooth lock

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.
