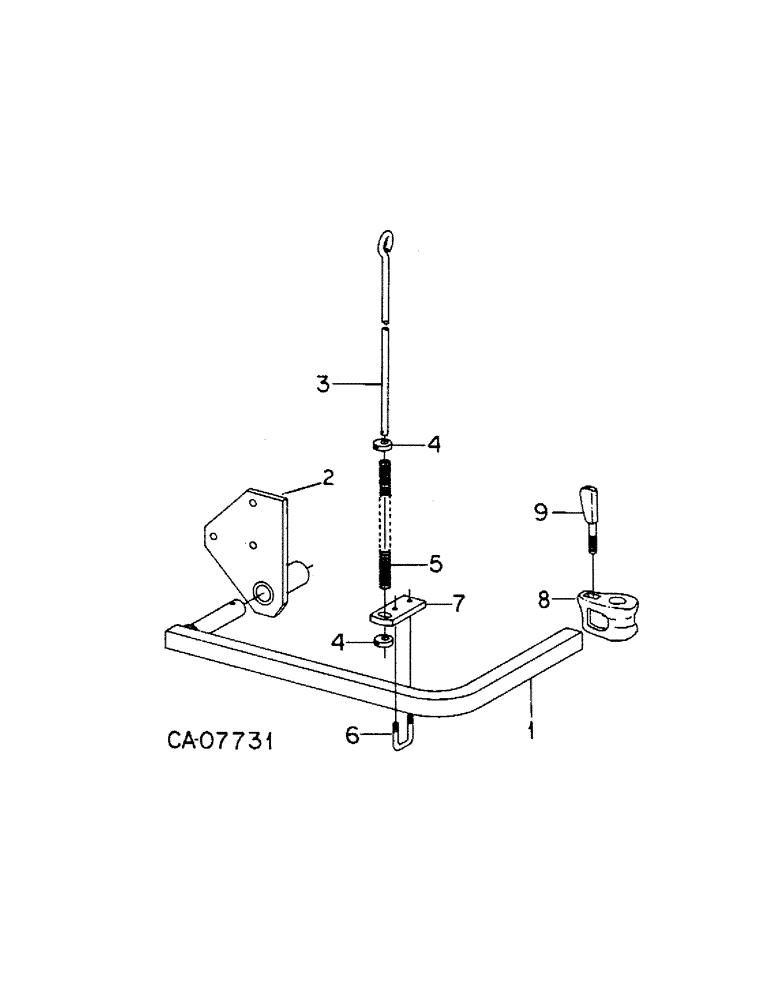

Запчасти Case IH 144T (E-4[A]) - REAR SECTION ATTACHMENT (09) - CHASSIS

1

1261594C1

BEAM

ASSY, gang

2шт.

372907R91

LINCH PIN

PIN ASSY, beam

2шт.

608700R1

WASHER

1.281 x 2.000 x .054

2шт.

2

1254273C1

PLATE

ASSY, LH

1шт.

2

1254274C1

PLATE

ASSY, RH

1шт.

30378R1

BOLT,Hex, M14 x 2 x 30mm, Cl 8.8, Full Thd

M14 x 30MM class 8.8

6шт.

3

1254289C1

ROD

lift

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

4

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, pressure rod

4шт.

21803R1

SET SCREW,1/2" - 13 x 5/8", Steel

SCREW, 1/2 x 5/8 znp c/pt sq/hd set

4шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1.312 x .152 PHC hdn

2шт.

5

PO172

SPRING

pressure rod

2шт.

6

PO17044A

BOLT

U-BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

7

1254295C1

BAR

lift bracket

2шт.

8

511985R2

CLAMP

standard

2шт.

9

511990R1

BOLT

BOLT, wedge

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.
