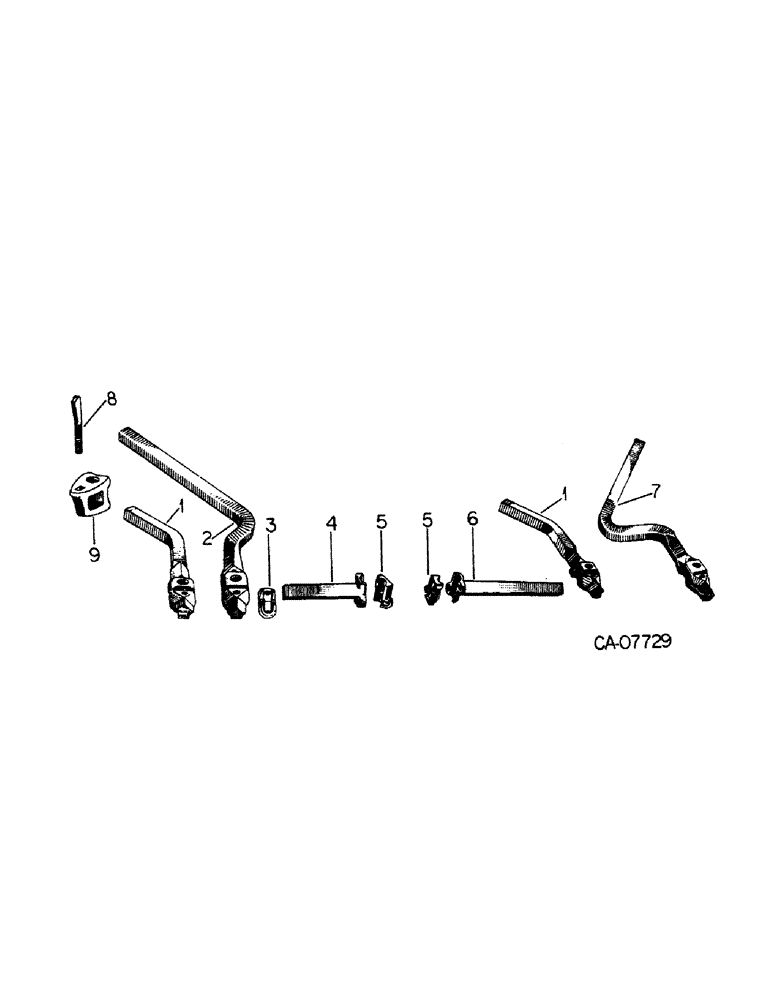

Запчасти Case IH 144T (E-3) - TOOL BARS AND EXTENSIONS (09) - CHASSIS

1

512419R1

BAR

tool

2шт.

18984R1

BOLT,7/8" - 9 x 2 3/4", Gr 2

7/8 x 2-3/4 sq-hd mach type 1

2шт.

30537B

NUT

7/8 in. conical hex.

2шт.

2

512420R1

BAR

tool RH

1шт.

18984R1

BOLT,7/8" - 9 x 2 3/4", Gr 2

7/8 x 2-3/4 sq-hd mach type 1

1шт.

30537B

NUT

7/8 in. conical hex.

1шт.

3

547750R1

CLAMP

tool bar extension

2шт.

18960R1

BOLT,5/8" - 11 x 4", Gr 2

5/8 x 4 sq-hd mach type 1

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

4

30790BA

EXTENSION

tool bar RH

1шт.

5

510918R1

CLAMP

CAP, tool bar extension

2шт.

18956R1

BOLT,5/8" - 11 x 2 1/2", Gr 2

5/8 x 2-1/2 sq-hd mach type 1

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

6

30927BA

EXTENSION, tool bar LH

1шт.

6

30791BA

EXTENSION

tool bar LH

1шт.

7

512421R1

BAR

tool LH

1шт.

18984R1

BOLT,7/8" - 9 x 2 3/4", Gr 2

7/8 x 2-3/4 sq-hd mach type 1

1шт.

30537B

NUT

7/8 in. conical hex.

1шт.

8

511985R2

CLAMP

standard

1шт.

511990R1

BOLT

BOLT, wedge

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.
