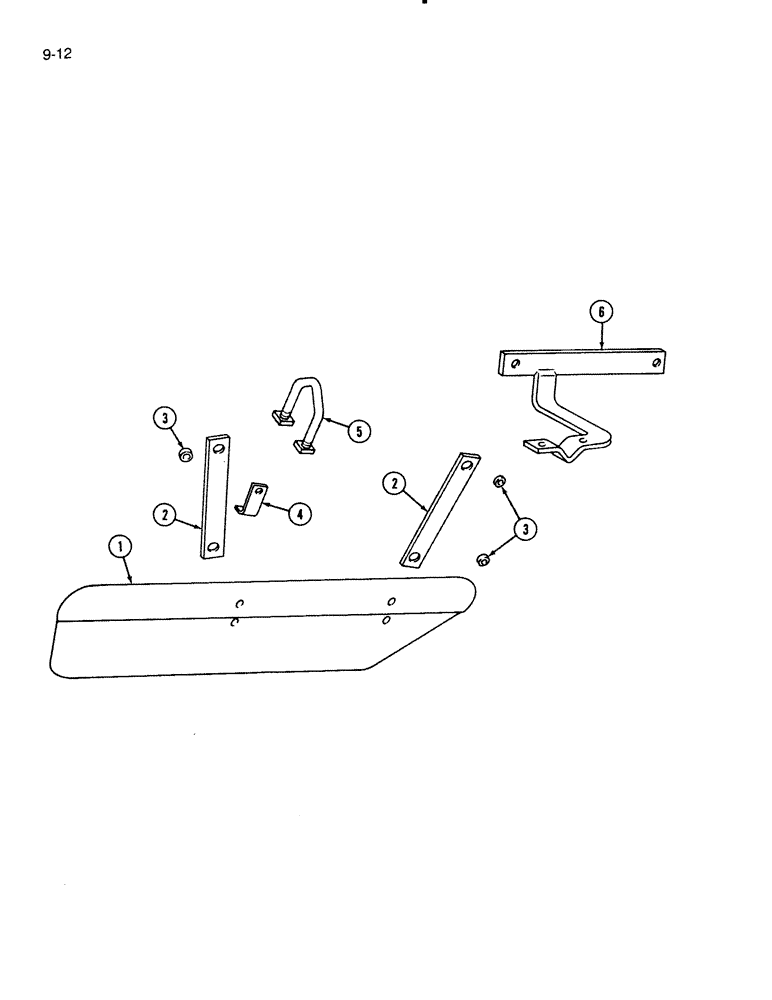

Запчасти Case IH 144T (9-12) - CULTIVATOR SHIELD ATTACHMENT, FOR USE WITH SPRING TRIPS

1

512007R1

SUPPORT

SHIELD - left

1шт.

1

512008R1

SHIELD

- right

1шт.

424-616

BOLT,Hex, 3/8" - 16 x 1", Gr 2

- hex, 3/8 NC x 1 inch, Grade 2

4шт.

495-81158

WASHER,0.47" ID x 1" OD x 0.06" Thk

- flat, 15/32 x 1 x 3/64 inch

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

2

511999R1

LINK

- pivot

4шт.

3

512836R1

WASHER

BUSHING - pivot link

8шт.

4

515217R1

SUPPORT

CLIP - adjusting shield

2шт.

5

517711R1

BOLT,3/8" - 16 x 2 1/4"

U-BOLT - 3/8 inch thread

2шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

6

517709R11

BRACKET

ASSEMBLY - shield attaching, left

1шт.

6

517710R11

BRACKET

ASSEMBLY - shield attaching, right

1шт.

424-616

BOLT,Hex, 3/8" - 16 x 1", Gr 2

- hex, 3/8 NC x 1 inch, Grade 2

2шт.

424-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 2

- hex, 3/8 NC x 1-1/4 inch, Grade 2

2шт.

495-81158

WASHER,0.47" ID x 1" OD x 0.06" Thk

- flat, 15/32 x 1 x 3/64 inch

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

138493

WASHER

- external tooth lock, 7/16 inch

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.
