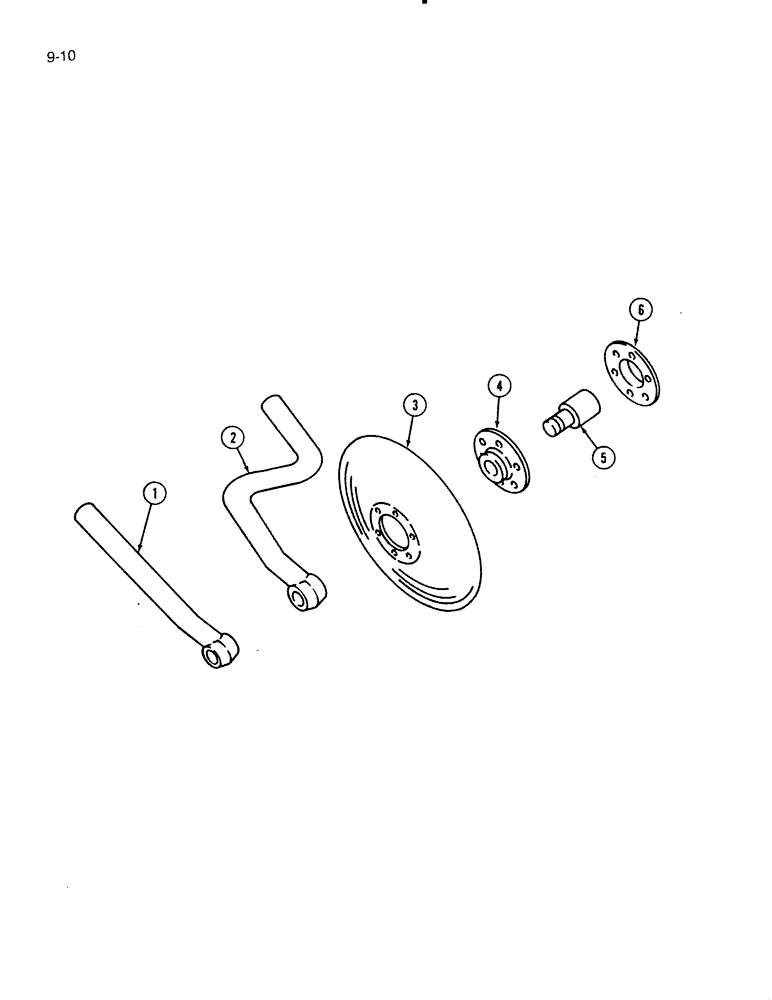

Запчасти Case IH 144T (9-10) - DISK HILLER, 13 INCH

1

469373R1

SUPPORT ASSY.

STANDARD - straight

1шт.

483-4387

SCREW - headless, hex socket, 3/8 x 7/16 inch

1шт.

2

469374R1

SUPPORT ASSY.

STANDARD - offset

1шт.

483-4387

SCREW - headless, hex socket, 3/8 x 7/16 inch

1шт.

3

469372R1

DISC,13"

- 13 x 3/32 inch

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

4

468009R1

RETAINER

HOUSING - bearing, open half

1шт.

5

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING - ball

1шт.

6

468008R1

COVER

HOUSING - bearing, closed half

1шт.
