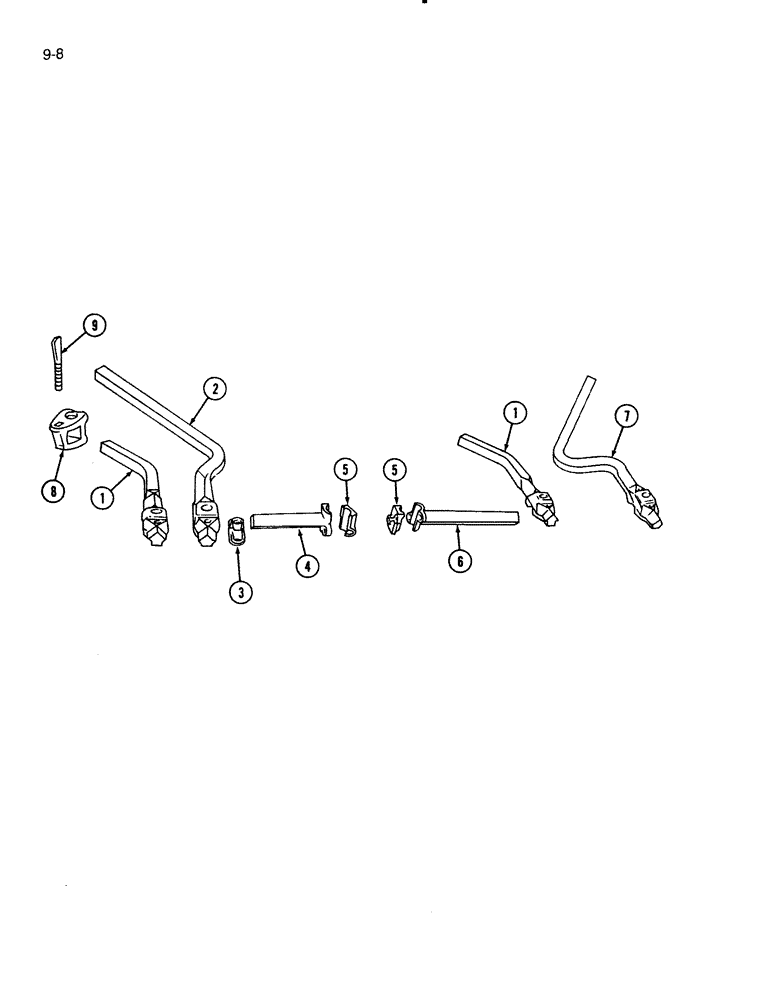

Запчасти Case IH 144T (9-08) - TOOL BARS AND EXTENSIONS

1

512419R1

BAR

- tool

2шт.

18984R1

BOLT,7/8" - 9 x 2 3/4", Gr 2

- square head, 7/8 x 2-3/4 inch

2шт.

30537B

NUT

- hex conical, 7/8 inch

2шт.

2

512420R1

BAR

- tool, right

1шт.

18984R1

BOLT,7/8" - 9 x 2 3/4", Gr 2

- square head, 7/8 x 2-3/4 inch

1шт.

30537B

NUT

- hex conical, 7/8 inch

1шт.

3

547750R1

CLAMP

- tool bar extension

2шт.

18960R1

BOLT,5/8" - 11 x 4", Gr 2

- square head, 5/8 x 4 inch

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

4

30790BA

EXTENSION

- tool bar, right

1шт.

5

510918R1

CLAMP

CAP - tool bar extension

2шт.

18956R1

BOLT,5/8" - 11 x 2 1/2", Gr 2

- square head, 5/8 x 2-1/2 inch

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

6

30927B

EXTENSION

- tool bar, left, 16-1/2 inch

1шт.

6

30791BA

EXTENSION

- tool bar, left, 13-1/2 inch

1шт.

7

512421R1

BAR

- tool, left

1шт.

18984R1

BOLT,7/8" - 9 x 2 3/4", Gr 2

- square head, 7/8 x 2-3/4 inch

1шт.

30537B

NUT

- hex conical, 7/8 inch

1шт.

8

511985R2

CLAMP

- standard

1шт.

9

511990R1

BOLT

BOLT - wedge

1шт.

425-1010

NUT,5/8"-11, G5

1шт.
