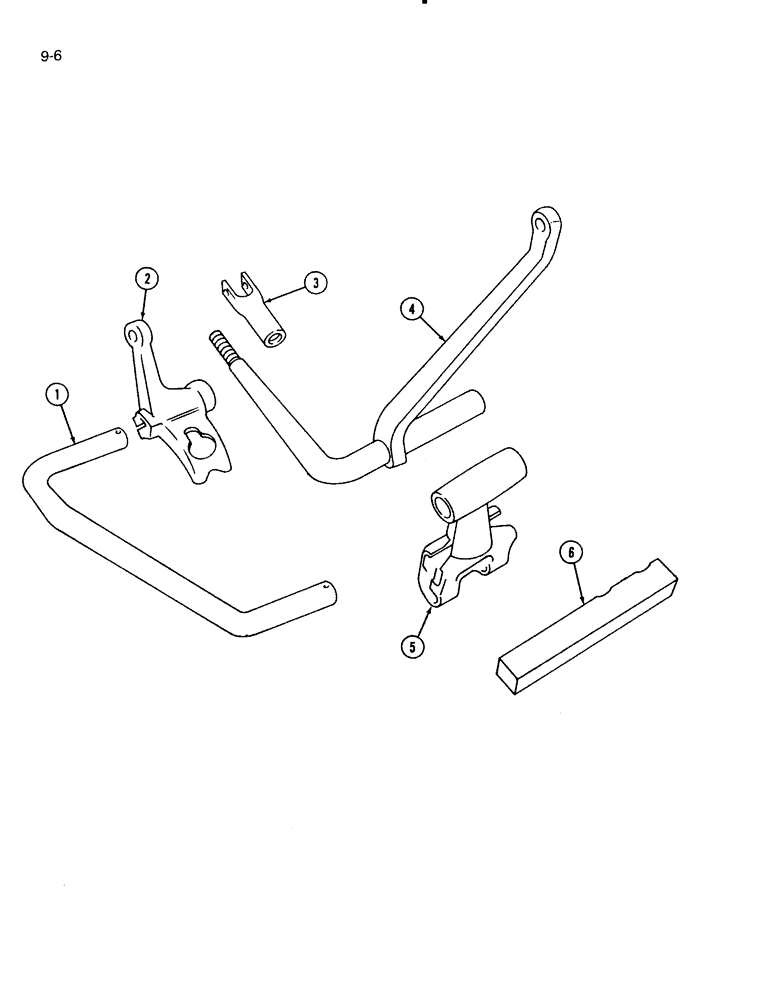

Запчасти Case IH 144T (9-06) - FRAME - RIGHT

1

1254228C1

ROD

BEAM - gang, right

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

2шт.

495-81213

WASHER,35.71mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-13/32 x 2 x 3/64 inch

2шт.

2

1254221C1

BEAM

- tool bar and gang, right

1шт.

424-732

BOLT - hex, 7/16 NC x 2 inch, Grade 2

2шт.

3

516766R1

YOKE

CLEVIS - upper link adjusting

1шт.

512654R1

PIN

- special, 5/8 x 2-3/8 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

4

1254227C1

LINK

ASSEMBLY - right

1шт.

32-1628

COTTER PIN,1/4" x 1 3/4"

PIN, SPLIT (COTTER), 1/4" x 1 3/4"

1шт.

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch

1шт.

516773R1

NUT

- hex jam, special, 1 inch

1шт.

5

PO3100B

ARM

BEARING - gang beam, right

1шт.

18941R1

BOLT,1/2" - 13 x 2 3/4", Gr 2

- square head, 1/2 x 2-3/4 inch

2шт.

18942R1

BOLT,1/2" - 13 x 3", Gr 2

- square head, 1/2 NC x 3 inch

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

6

1254222C1

BAR

- front frame, right

1шт.

1264077C1

ANGLE

SPACER - bar (For use on IH 274 tractors, Prior to P.I.N 8331)

1шт.
