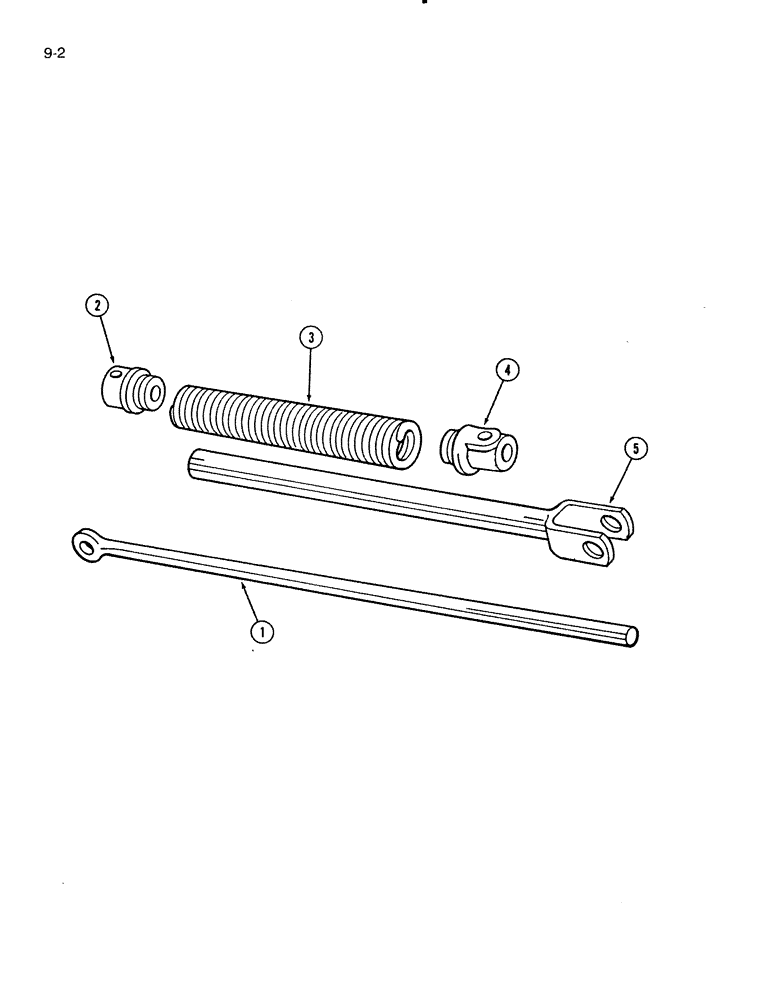

Запчасти Case IH 144T (9-02) - LIFT LINK AND CONNECTIONS

1

PO28372

ROD

LINK - lift

2шт.

2

514609R91

PLUG

ASSEMBLY - spring

2шт.

485-15016

SET SCREW,Sq Hd, 1/2"-13 x 1"

SCREW - set, 1/2 NC x 1 inch

2шт.

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

2шт.

3

PO27501

SPRING

- lifting link

2шт.

4

514608R91

PLUG

ASSEMBLY - spring

2шт.

485-15016

SET SCREW,Sq Hd, 1/2"-13 x 1"

SCREW - set, 1/2 NC x 1 inch

2шт.

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

2шт.

5

1254244C1

ROD

PIPE ASSEMBLY - lift link

2шт.

22068R1

HEADED PIN,5/8" x 1 13/16"

PIN - headed, 5/8 x 1-25/32 inch

2шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.
