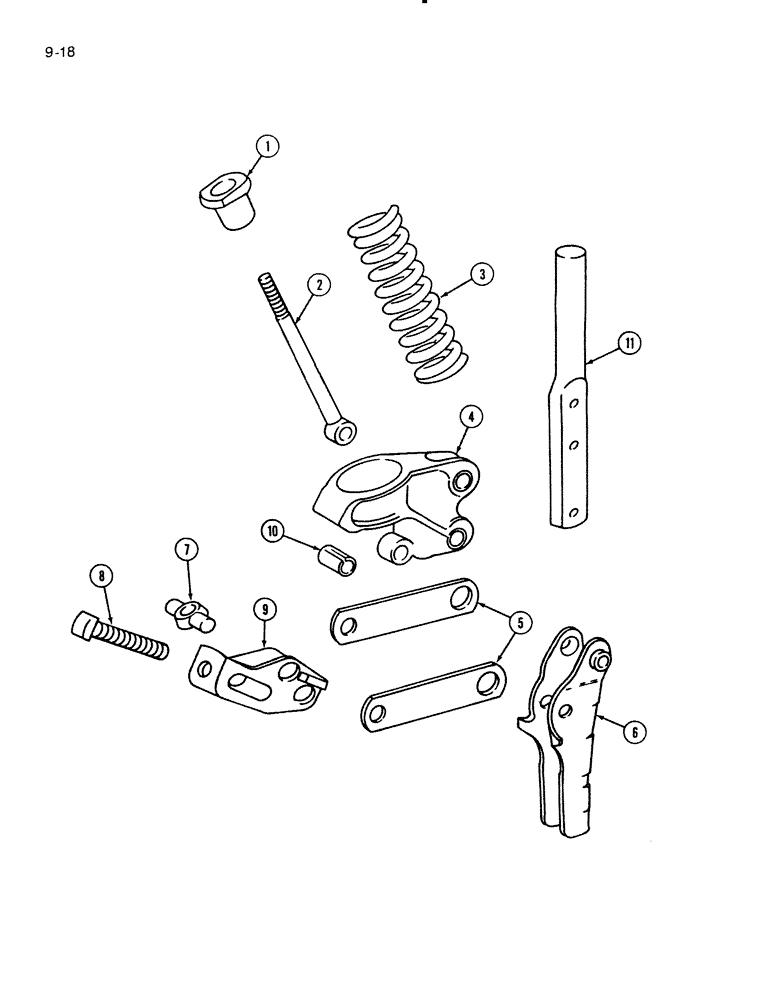

Запчасти Case IH 144T (9-18) - SPRING TRIPS, NUMBER 16 TYPE

1

5105BB

NUT

WASHER - spring

1шт.

2

27018B

ROD

- spring

1шт.

IH104201

RIVET,Csk, 3/8" x 1 1/2"

- countersunk head, 3/8 x 1-1/2 inch

1шт.

3

15282BA

SPRING

- 1-11/16 OD x 5-1/4 inch long, 10-1/4 coils

1шт.

4

1694BA

BRACKET

- spring

1шт.

45-728

RIVET,But Hd, 7/16" x 1 3/4"

- button head, 7/16 x 1-3/4 inch

2шт.

5

27016BA

STRIP

STRAP - tie

2шт.

135203

RIVET,Csk, 7/16" x 3/4"

- countersunk head, 7/16 x 3/4 inch

2шт.

495-81158

WASHER,0.47" ID x 1" OD x 0.06" Thk

- flat, 15/32 x 1 x 3/64 inch

2шт.

6

30811B

SHANK

- slotted

1шт.

30813B

RIVET

- slotted shank, standard head, 1/2 x 1-3/8 inch

1шт.

7

27017B

PIVOT

TRUNNION - pivot

1шт.

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 3/64 inch

2шт.

8

27015BX

BOLT,Adj, Hex, 1/2" - 13 x 2 3/4", Drilled

ASSEMBLY - adjusting, with nut

1шт.

425-128

SLOTTED NUT,1/2"-13, G5

NUT - hex slotted, 1/2 inch NC

1шт.

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

9

1695BA

YOKE

- adjusting

1шт.

46-724

RIVET,Csk, 7/16" x 1 1/2"

- countersunk head, 7/16 x 1-1/2 inch

1шт.

10

27326BA

SPACER

BUSHING - spring trip assembly

1шт.

11

518286R1

SUPPORT ASSY.

STANDARD - straight, long, 15-3/4 inch

1шт.

11

29923BA

SUPPORT ASSY.

STANDARD - straight, short, 11-1/4 inch

1шт.

11

518285R2

SUPPORT ASSY.

STANDARD - straight, short, 13-1/4 inch

1шт.
