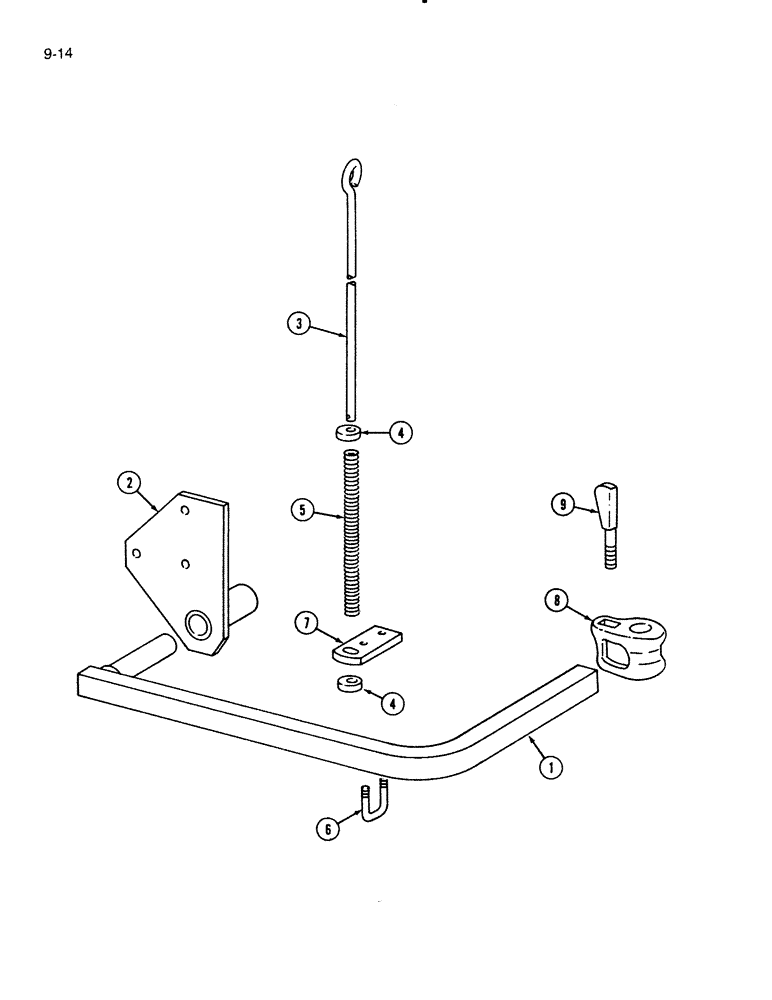

Запчасти Case IH 144T (9-14) - REAR SECTION ATTACHMENT

1

1261594C1

BEAM

ASSEMBLY - gang

2шт.

372907R91

LINCH PIN

PIN ASSEMBLY - beam

2шт.

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch

2шт.

2

1254273C1

PLATE

ASSEMBLY - left

1шт.

2

1254274C1

PLATE

ASSEMBLY - right

1шт.

614-14030

BOLT,Hex, M14 x 2 x 30mm, Cl 8.8, Full Thd

6шт.

3

1254289C1

ROD

- lift

2шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.

4

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR ASSEMBLY - pressure rod

4шт.

485-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW - square head set, 1/2 NC x 5/8 inch

4шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

2шт.

5

PO172

SPRING

- pressure rod

2шт.

6

PO17044A

BOLT

U-BOLT - 3/8 inch thread

2шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

7

1254295C1

BAR

- lift bracket

2шт.

8

511985R2

CLAMP

- standard

2шт.

9

511990R1

BOLT

BOLT - wedge

2шт.

425-1010

NUT,5/8"-11, G5

2шт.
