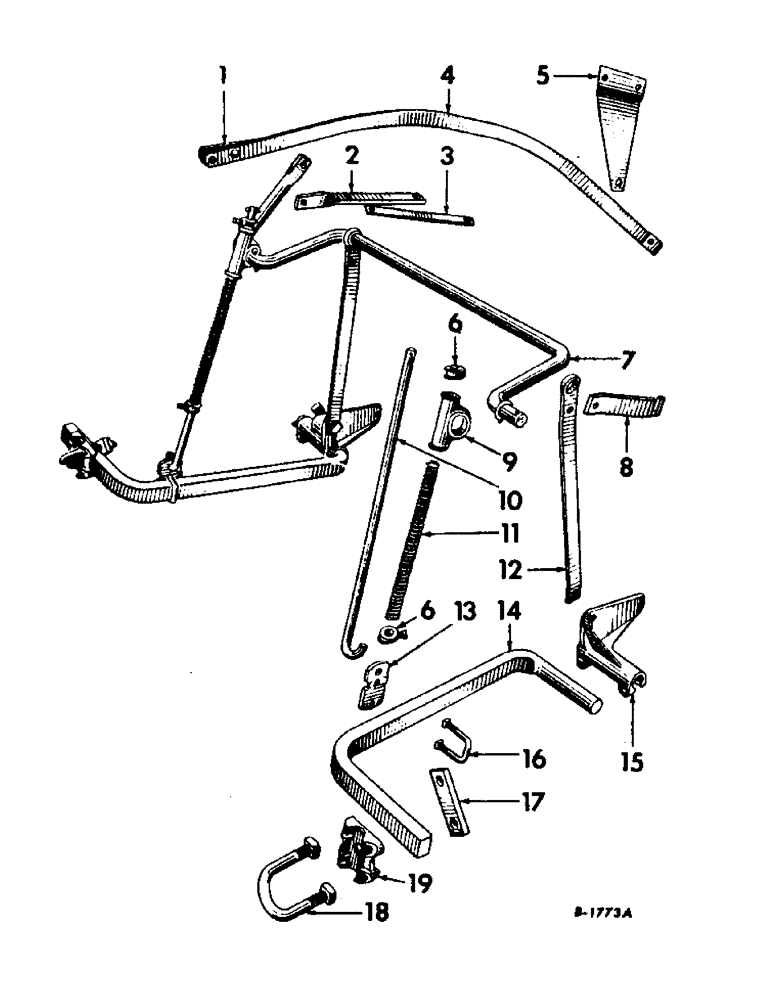

Запчасти Case IH 144 (L-07) - ROCKSHAFT AND TOOL BAR, REAR SECTION, FOR FARMALL A TRACTOR

1

29902B

STRAP, hammer

1шт.

104113

RIVET,But Hd, 3/8" x 1"

3/8 x 1 pln but/hd sol

1шт.

2

29915B

BRACE, rockshaft left support

1шт.

18820R1

BOLT

5/8 x 1 type 1

1шт.

3

PO22233

BRACE, rockshaft left support brace

1шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 type 1

1шт.

18820R1

BOLT

5/8 x 1 type 1

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

4

29911B

LINK W/HAMMER STRAP, lifting rear

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

Q837

HEADED PIN,15.88mm OD x 38.1mm L

PIN, 5/8 x 1-1/2 in. dld-std-hd pin

2шт.

5

29904B

PLATE, lifting link

1шт.

6

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, pressure rod set

1шт.

21803R1

SET SCREW,1/2" - 13 x 5/8", Steel

SCREW, 1/2 x 5/8 znp c/pt sq/hd set

1шт.

7

29912B

ROCKSHAFT, rear

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

591715R1

WASHER

1.031 x 1.500 x .054

4шт.

8

30039B

BRACE, rockshaft right support

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 type 1

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

22187R1

WASHER

.531 x 1.125 x .054

1шт.

9

1855B

PIVOT

SWIVEL, rear pressure rod

1шт.

10

29276B

ROD

pressure spring rod

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

11

PO172

SPRING

pressure rod, .947 in. OD, 12-5/8 in. long, 42 coils

1шт.

12

29286BA

SUPPORT, rear rockshaft

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 type 1

1шт.

19544R1

BOLT,Hex, 5/8"-11 x 3 1/4", G2

5/8 x 3-1/4 type 1

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

13

27665BA

BRACKET

pressure spring rod

1шт.

14

29913B

BEAM, rear

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

15

1893BB

SPRING, rear gang beam left

1шт.

15

1892BB

BEARING, rear gang beam right

1шт.

16873R1

BOLT,Short NK, 7/16"-14 x 2 1/4", G2

7/16 x 2-1/4 crg type 1

4шт.

16

S2122X

U-BOLT W/NUTS, rear pressure rod bracket

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

17

29269BA

STRAP

standard clamp u-bolt

1шт.

18

29515BX

BOLT

U-BOLT W/NUTS, standard clamp

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

19

1844BA

CLAMP

standard

1шт.
