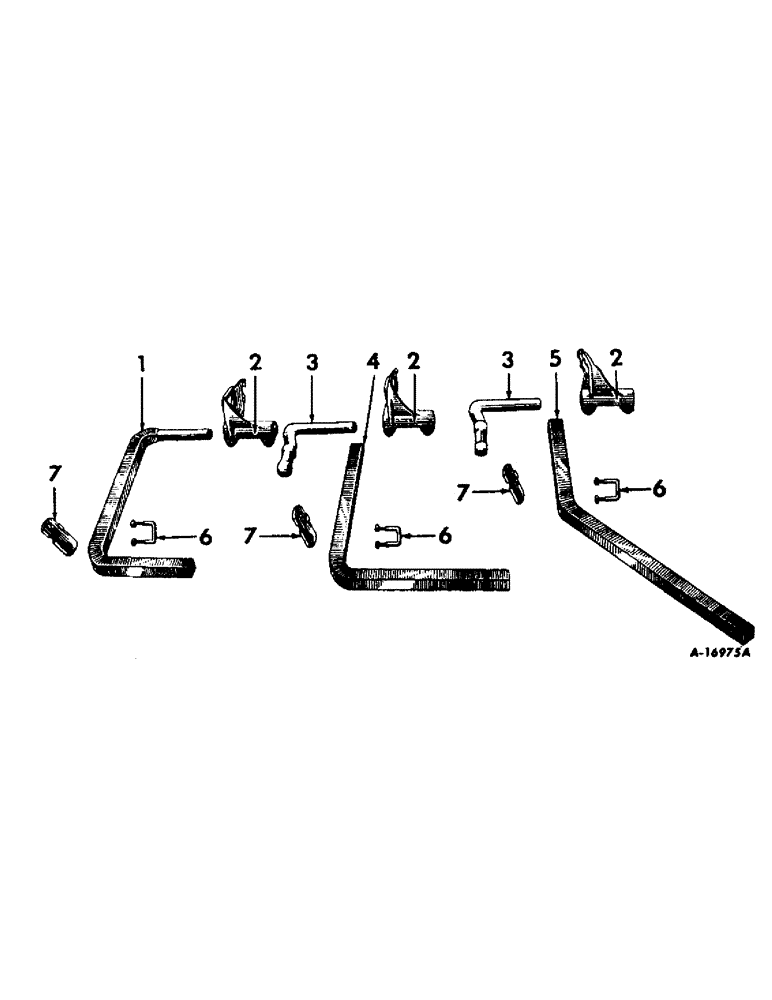

Запчасти Case IH 144 (L-06) - GANG BEAMS, REAR SECTION

1

512423R1

BEAM

gang, for spring trip 2, sweep or spring tooth 2, shovel rear section

1шт.

21637R1

PIN, 1/4 x 1-3/4 C-Z self-open cot

1шт.

2

1929BA

CLAMP

BEARING, gang beam head left, not used with fast, hitch

1шт.

2

1930BA

CLAMP

BEARING, gang beam head right, not used with fast, hitch

1шт.

623078R1

BOLT

7/16 x 2-1/2 CAD crg type 1

1шт.

18800R1

BOLT, 7/16 x 2-1/2 type 1

1шт.

3

29956B

HEAD

gang beam

1шт.

512426R11

BOLT, 1/2 x 3-1/4 in. sq-hd mach, heat-treated

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

4

512424R1

BEAM, gang, for spring trip 2, sweep rear section

1шт.

5

512425R1

BEAM, gang, for spring trip 2 or 4 sweep rear section

1шт.

6

PO17044A

BOLT

U-BOLT, pressure spring rod bracket

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

7

27665BA

BRACKET

pressure spring rod

1шт.
