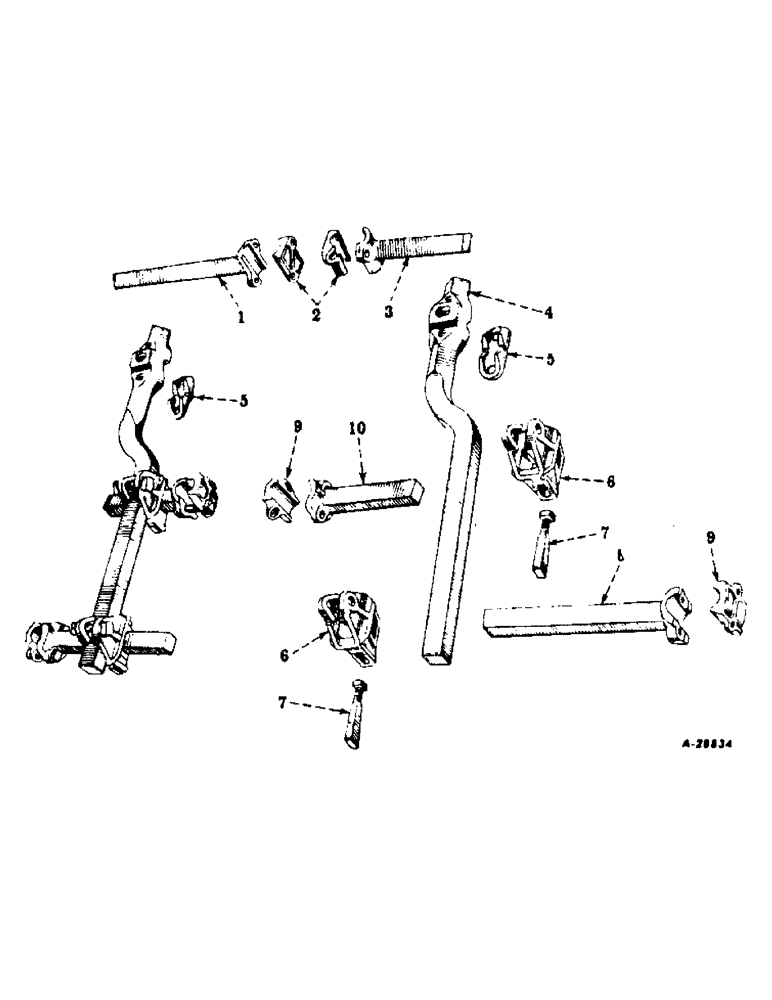

Запчасти Case IH 144 (L-19) - FRONT SECTION TOOL BAR AND EXTENSIONS, SOUTHEASTERN DISTRICT

1

30791B

EXTENSION, tool bar left, 1-3/8 in. sq, 14-1/8 in. long

1шт.

2

510918R1

CLAMP

CAP, tool bar extension

1шт.

18956R1

BOLT,5/8" - 11 x 2 1/2", Gr 2

5/8 x 2-1/2 sq-hd mach type 1

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

3

30790BA

EXTENSION

tool bar right, 1-3/8 in. sq, 8-5/8 in. long

1шт.

4

517340R1

BAR

TOOL BAR

1шт.

18984R1

BOLT,7/8" - 9 x 2 3/4", Gr 2

7/8 x 2-3/4 sq-hd mach type 1

1шт.

30537B

NUT

7/8 in. conical hex

1шт.

5

547750R1

CLAMP

tool bar extension front

1шт.

18960R1

BOLT,5/8" - 11 x 4", Gr 2

5/8 x 4 sq-hd mach type 1

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

6

516216R1

CLAMP

tool bar extension rear

1шт.

18825R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 2

5/8 x 2-3/4 type 1

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

7

27585BA

BOLT,Wedge, 1/2" - 13 x 4 1/2", Long

wedge

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

8

29603BA

CLAMP

EXTENSION, tool bar rear, 1-1/4 in. sq, 10-3/4 in. long

1шт.

9

1779BB

CLAMP

CAP, tool bar rear extension

1шт.

29822B

BOLT

1/2 x 2-3/4 in. sq-hd mach, heat-treated

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

10

28236BB

CLAMP

EXTENSION, toll bar center, 1-1/4 in. sq, 7-3/4 in. long

1шт.
