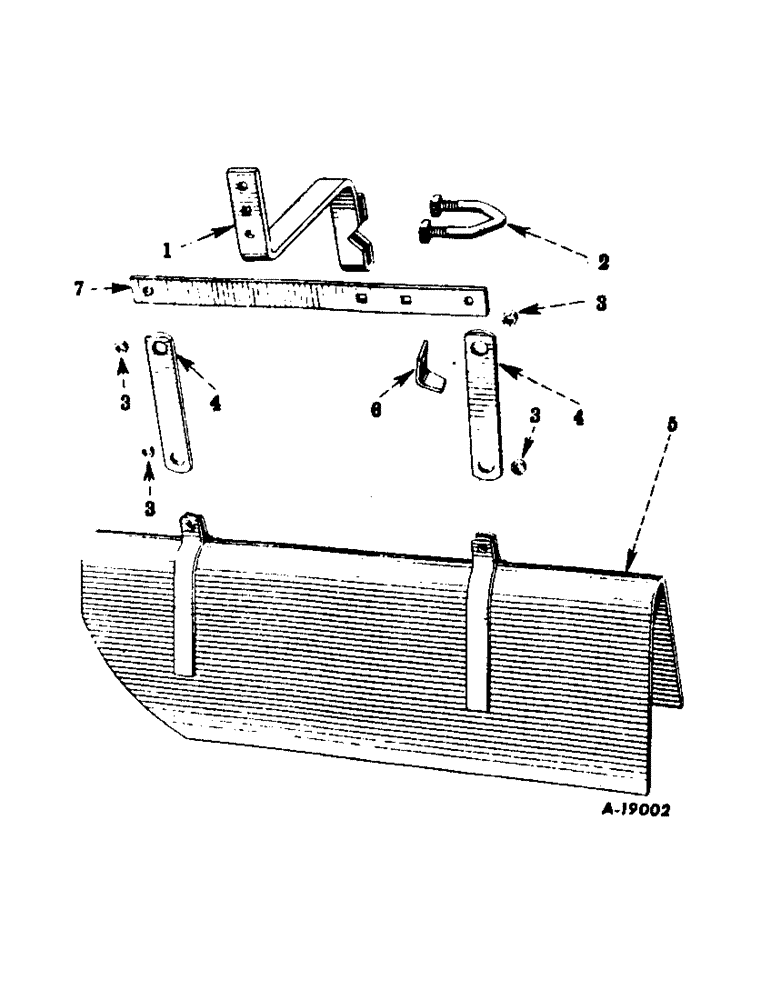

Запчасти Case IH 144 (L-15) - CULTIVATOR SHIELD, LISTER TYPE

1

513269R1

BRACKET, attaching

1шт.

2

511998R11

BOLT,7/16" - 14 x 3 1/4"

U-BOLT W/NUTS, attaching brackets

1шт.

NLS

NO LONGER SERVICED

BOLT, 7/16 type 5

2шт.

3

512836R1

WASHER

BUSHING, pivot link

1шт.

4

513265R1

LINK, pivot

1шт.

5

513267R91

SHIELD W/STRAPS, welded assembly

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

515217R1

SUPPORT

CLIP, adjusting

1шт.

7

513432R91

SUPPORT, pivot link, welded assembly

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 type 1

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

136857

WASHER,Ext Tooth, 7/16"

7/16 ext tooth lock

2шт.

607891R1

WASHER

.469 x 1.000 x .054

2шт.
