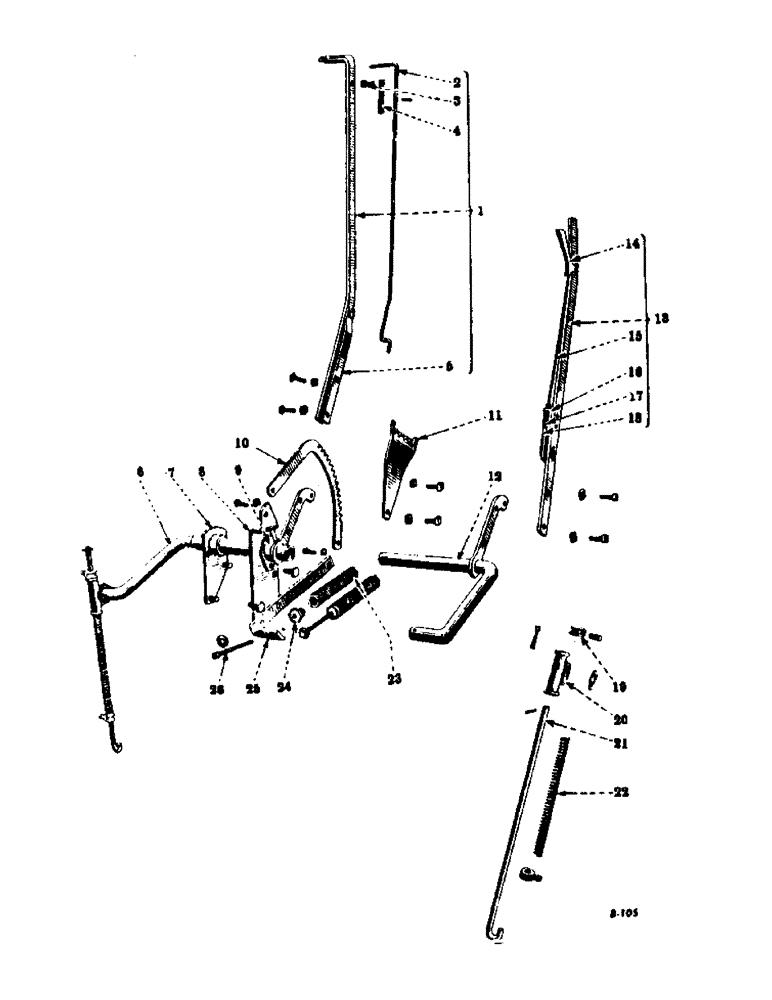

Запчасти Case IH 144 (L-13) - ROCKSHAFT LEVER AND PRESSURE RODS, FOR FARMALL A TRACTOR

1

29336B

LEVER ASSEMBLY, lifting

1шт.

2

29302B

ROD, latch

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

3

25457B

PIN

5/16 x 3/4 in. cotter, spec. hd., guide for latch rod

1шт.

4

2067A

SPRING

lever lifting, .644 OD, 3-3/8 in. long, 20 coils

1шт.

5

29277B

GUIDE, latch rod

1шт.

RIVET, 3/8 x 1 in. rd-hd

1шт.

6

29908B

ROCKSHAFT, right front

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

2шт.

608700R1

WASHER

1.281 x 2.000 x .054

2шт.

7

30422B

PLATE W/BEARING, right rockshaft bearing

1шт.

30421B

PLATE W/BEARING, left rockshaft bearing

1шт.

18820R1

BOLT

5/8 x 1 type 1

4шт.

9

1845B

BEARING, rockshaft

1шт.

104099

RIVET,But Hd, 5/16" x 1"

5/16 x 1 pln but/hd sol

2шт.

10

29919B

QUADRANT, lifting lever

1шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 type 1

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

11

29914BA

QUADRANT, adjusting lever

1шт.

18798R1

BOLT,Hex, 7/16"-14 x 2", G2

7/16 x 2 type 1

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

12

29909B

ROCKSHAFT, left front

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

2шт.

607800R1

WASHER, 1-9/32 x 2 x 16 ga

2шт.

13

29918B

LEVER ASSEMBLY, adjusting

1шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 type 1

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

14

25549B

LATCH, adjusting lever hand

1шт.

104083

RIVET,But Hd, 1/4" x 3/4"

1/4 x 3/4 pln but/hd sol

1шт.

15

S2836

BOLT

ROD, adjusting lever latch

1шт.

16

29278BA

GUIDE, adjusting lever spring bolt

1шт.

NLS

NO LONGER SERVICED

3/8 x 1 pln but/hd sol

2шт.

17

PO34

SPRING

adjusting lever, .581 in. OD, 2-3/8 in. long, 13 coils

1шт.

18

29270B

BOLT, adjusting lever spring

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

Q108

WASHER

WSAHER, .438 x 1.000 x .054 pln

2шт.

19

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, pressure spring rod set

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. cup-pt sq-hd set

1шт.

20

1854B

SWIVEL, front pressure rod

1шт.

21

29276B

ROD

pressure spring

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

22

PO189

SPRING, front pressure rod, .835 OD, 12 in. long, 40 coils

1шт.

23

PO192

SPRING, helper, 1-1/2 in. OD, 9-5/32 in. long, 32-1/2 coils

1шт.

24

9470

PLUG, helper spring

1шт.

25

29310B

ANCHOR, helper spring

1шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 type 1

2шт.

135209

RIVET, 7/16 x 1-1/4 pln 90D c/hd sol

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

26

29338BA

BOLT W/NUT, 15/16 x 4-1/4 in. mach, in helper spring plug

1шт.

PO10534

WASHER

15/32 x 1-1/4 in. x 11 ga

1шт.

27665BA

BRACKET

pressure rod

1шт.

PO17044A

BOLT

U-BOLT, front pressure rod bracket

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
