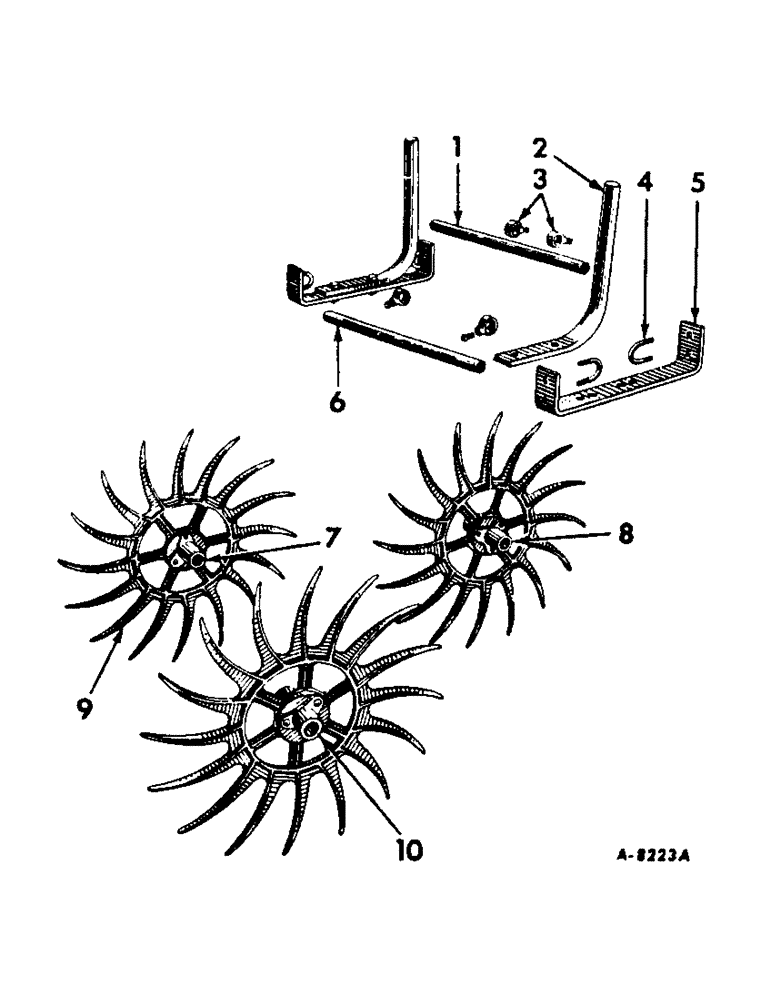

Запчасти Case IH 144 (L-11) - ROTARY WEEDER, BUILT 1947 TO 1952

1

3989B

AXLE, front

1шт.

2

28360B

STANDARD, 1-1/4 in. dia

1шт.

180178

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

1/2 x 1-5/8 type 5

2шт.

3

2638X

COLLAR

W/SET SCREW, set

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2 x 3/4 in. cup-pt sq-hd set

1шт.

4

3988B

U-BOLT W/NUTS, attaching bracket

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

5

3987B

BRACKET, axle

1шт.

6

3990B

AXLE, rear

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

591715R1

WASHER

1.031 x 1.500 x .054

2шт.

7

8622

HUB, short right

1шт.

104103

RIVET

5/16 x 1-1/2 pln but/hd sol

3шт.

8

8621

SHIM

HUB, long

1шт.

104103

RIVET

5/16 x 1-1/2 pln but/hd sol

3шт.

9

8620

HYDRAULIC CYLINDER

WHEEL

1шт.

10

8623

HOSE

HUB, short left

1шт.

104103

RIVET

5/16 x 1-1/2 pln but/hd sol

3шт.
