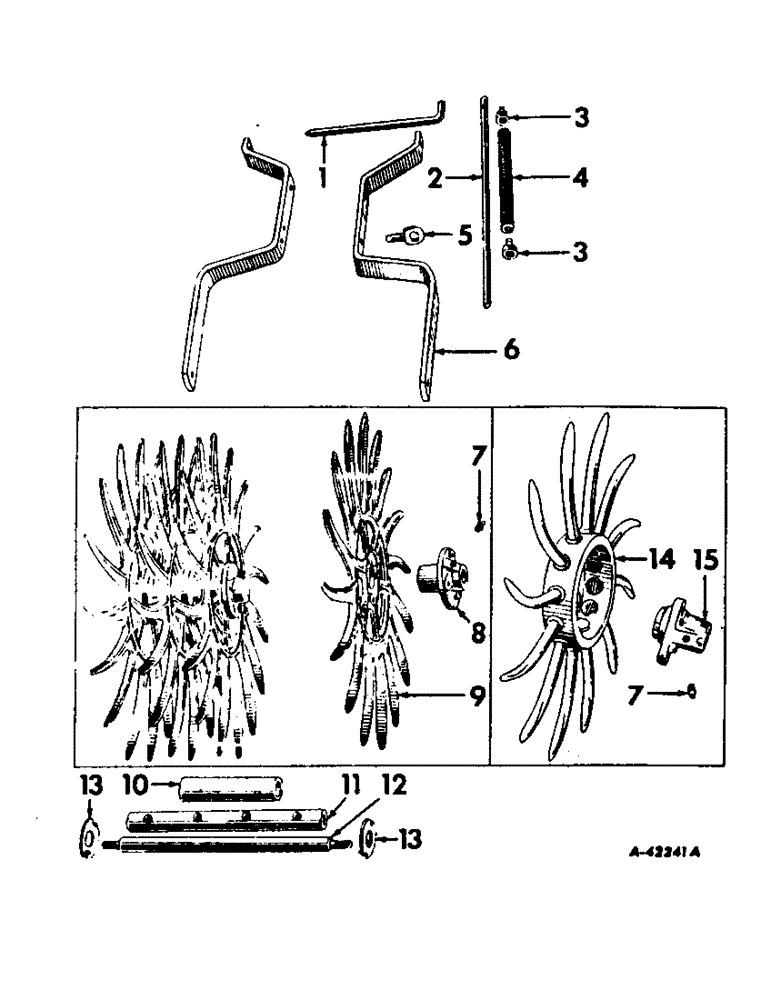

Запчасти Case IH 144 (L-09) - ROTARY WEEDERS

1

517701R1

PIN, attaching

1шт.

PO18499

COTTER PIN

quick-attachable cotter

1шт.

2

517700R1

ROD, pressure

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

460309R1

COTTER PIN

PIN, quick-attachable cotter

1шт.

453116R1

PIN

5/8 x 2-3/8 in. headed

1шт.

3

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, set

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. cup-pt sq-hd set

1шт.

4

308X

SPRING, pressure, OD 1.113, 7-7/8 in. long, 23 coils

1шт.

5

517699R1

SWIVEL, pressure rod

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

6

517703R1

RAIL, frame

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

7

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

8

517698R1

HUB, wheel (55)

56шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/2 type 1

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

9

8620

HYDRAULIC CYLINDER

WHEEL, weeder (55)

56шт.

10

517708R1

SPACER, weeder wheel, used in place of the two center wheels when the weeder is to be used as a shield

1шт.

517706R1

SLEEVE, weeder wheel

1шт.

M94596

WASHER, 1-5/64 x 1-5/8 in. x 16 ga

3шт.

12

516442R1

SHAFT, wheel

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20825R1

WASHER

.781 x 2.000 x .105

2шт.

13

516447R1

WASHER, wear

1шт.

14

522294R11

WHEEL, weeder

56шт.

15

522293R1

HUB, wheel

56шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 type 1

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.
