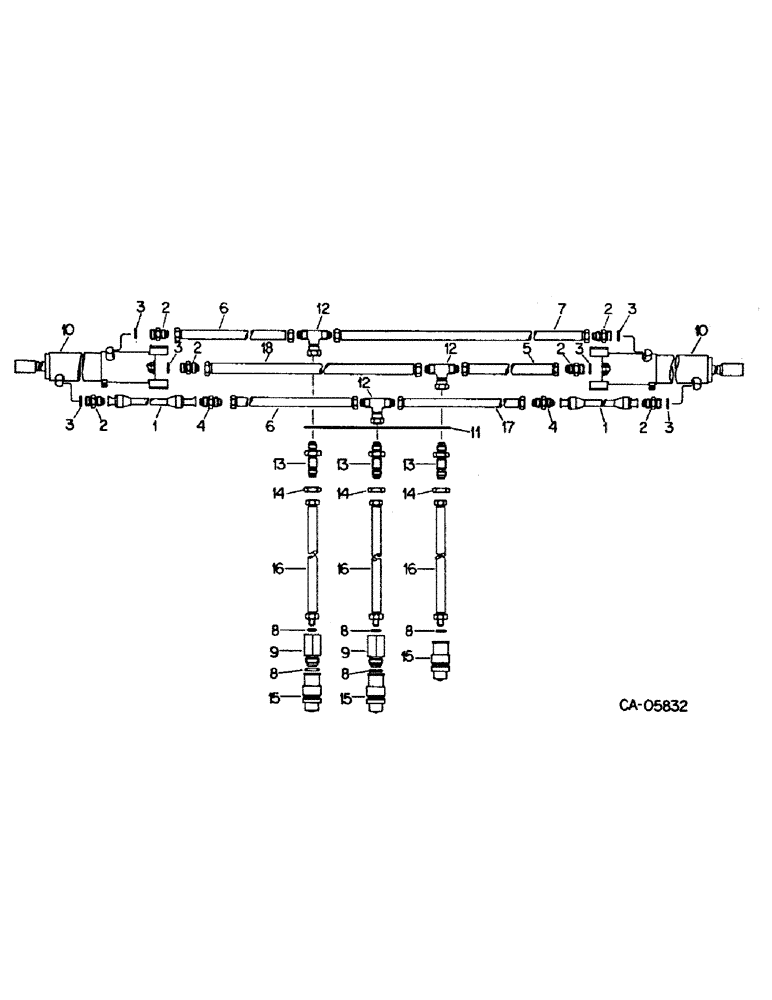

Запчасти Case IH 133 (A-10) - HYDRAULIC CONNECTIONS, UNITS Z THROUGH AD, MACHINES BUILT TO (08) - HYDRAULICS

1

100303C1

HYD TUBE,322.6 mm Length

TUBE ASSY, hydraulic

2шт.

2

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 znd 37 deg hyd flared tube short swivel

6шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

6шт.

4

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 znd 37 deg hyd flared tube

2шт.

5

100383C1

HOSE

59 in. hydraulic, units AA, AB and AD

1шт.

5

113374C1

HOSE

50 in. hydraulic, units Z and AC

1шт.

6

100384C1

HOSE

65 in. hydraulic, units AA, AB and AD

1шт.

6

100417C1

HOSE

55 in. hydraulic, units Z and AC

1шт.

7

119743C1

HOSE

69 in. hydraulic, Units Z and AC

1шт.

7

119719C1

HOSE

79 in. hyd, units AA, AB and AD

1шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

9

493960R91

VALVE

ASSY, drop retarding

2шт.

103575

PIN,#1 x 1 1/4", Tapered

no. 1 x 1-1/4 pln taper

2шт.

10

113978C93

CYLINDER

ASSY, 3-1/2 x 12 in., two stage hyd

2шт.

63498C91

SEAL PACKAGE

KIT, cylinder o-ring and seal service

1шт.

11

119984C1

BAR

hyd hose

1шт.

12

9410308

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

7/8-14 znd 37 deg hyd flared tube swivel

3шт.

13

9403256

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

UNION, 7/8-14 znd 37 deg hyd flared tube bulkhead

3шт.

14

9403295

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, 7/8-14 znd bulkhead lock

3шт.

15

544787R91

COUPLING, BREAK AWAY

COUPLER, male

3шт.

16

541629R1

HOSE

46 in. hydraulic

3шт.

17

119719C1

HOSE

79 in. hydraulic, units AA, AB and AD

1шт.

17

119743C1

HOSE

69 in. hyd, Unit Z and AC

1шт.

18

100281C1

HOSE

75 in. hydraulic, units AA, AB and AD

1шт.

18

100384C1

HOSE

65 in. hyd, units Z and AC

1шт.
