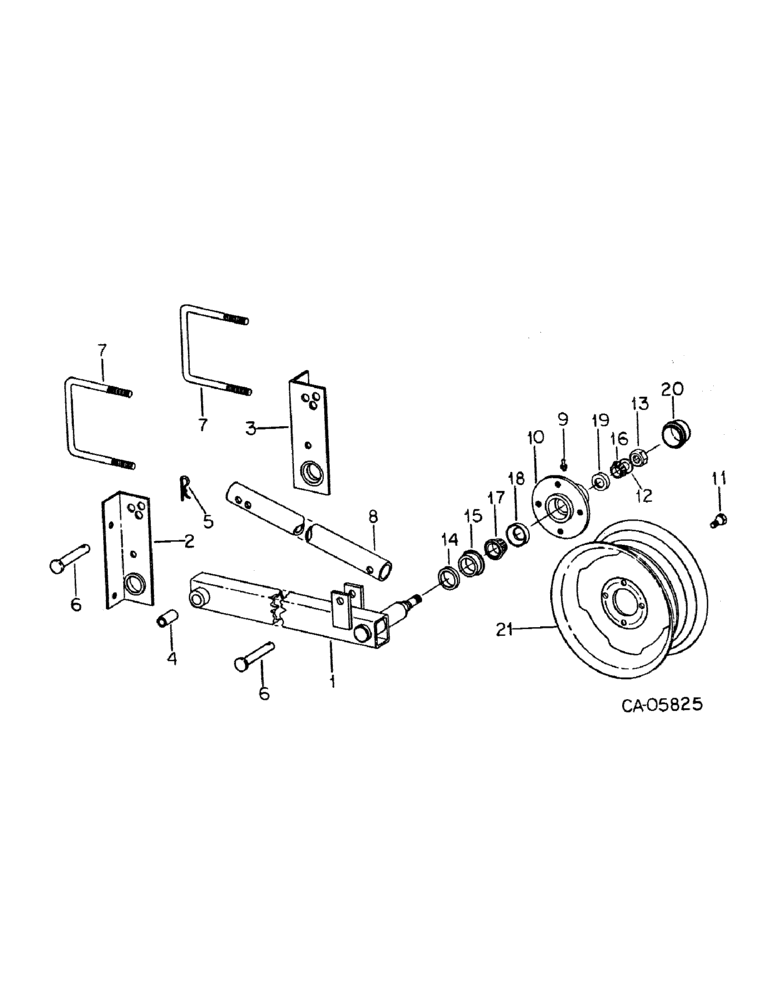

Запчасти Case IH 133 (A-33) - QUICK ADJUSTABLE CARRYING WHEEL (09) - CHASSIS

1

100521C1

TUBE ASSY, gauge wheel right

1шт.

1

100522C1

TUBE ASSY, gauge wheel left

1шт.

2

100526C1

SUPPORT ASSY, right angle

2шт.

3

100527C1

SUPPORT

ASSY, left angle

2шт.

4

100530C1

SPACER, wheel angle

2шт.

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

1/2 x 3-1/2 type 1

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

5

520175R1

CLIP

PIN, Q. A. cot.

2шт.

6

21675R1

PIN

3/4 x 3.250 hd type 5

4шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

7

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

5/8, 5 x 7, 5 x 7 in. frames

4шт.

7

1250813C1

U-BOLT

5/8, 7 x 7 in. frames

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

8

100531C1

ARM, gauge wheel support

2шт.

9

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF str lub

2шт.

10

472220R21

HUB

W/SET SCREW, wheel

2шт.

443804

SCREW, 1/4-28 x 1/4 stl-ov-pt hdls set

2шт.

11

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

conical hd

8шт.

12

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

2шт.

387897R91

VALVE STEM

VALVE, TR 415 w/core & cap

1шт.

13

69442D

NUT

slt-hex.

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

14

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil

2шт.

15

472222R1

SLEEVE

oil seal wear

2шт.

16

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, outer cone

2шт.

16

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

17

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, wheel hub inner cone

2шт.

18

651817R1

BEARING CUP

BEARING, inner cup

2шт.

18

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

19

651814R1

BEARING CUP

BEAIRNG, outer cup

2шт.

20

651194R1

CAP

wheel brg hub

2шт.

21

455169R92

WHEEL

15 in.

2шт.

387897R91

VALVE STEM

VALVE, TR-415 w/core & cap

1шт.
