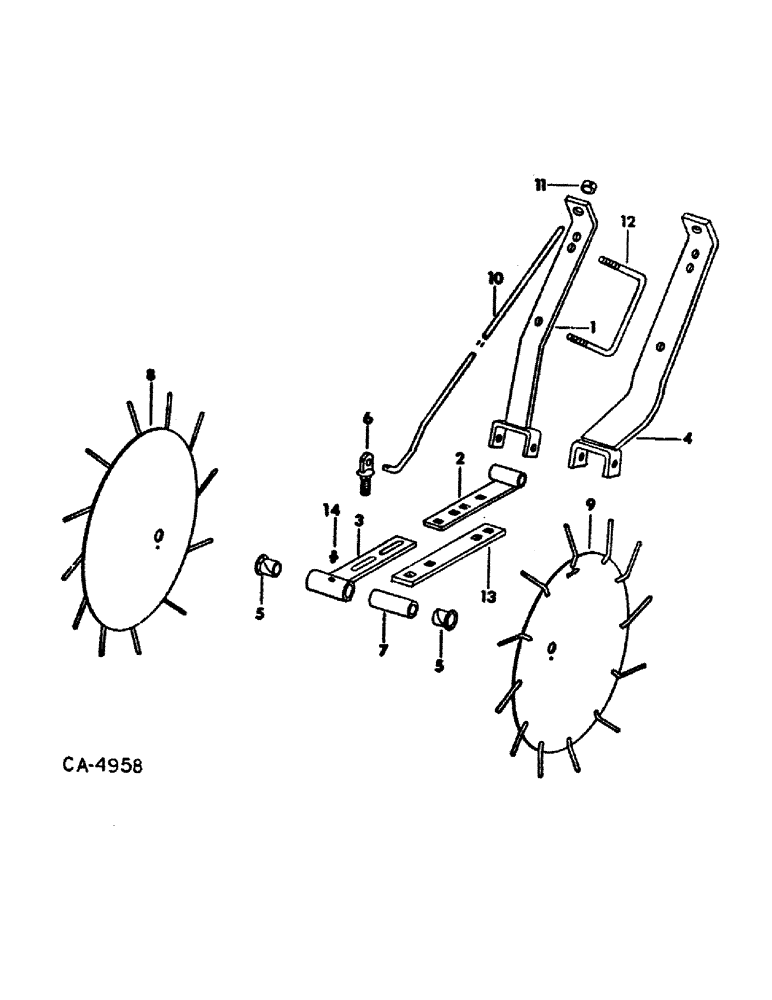

Запчасти Case IH 133 (A-31) - ROLLING SHIELD, ONE PER ROW (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
542920R2
BRACKET
ASSY, straight mounting
1шт.
2
542929R1
PIVOT
ASSY
1шт.
516227R1
DOWEL
PIN, 5/8 x 4 std-hd
1шт.
21632R1
COTTER PIN
PIN, 3/16 x 1 C-Z self-opening cot.
1шт.
3
542932R1
HOUSING
ASSY, bearing
1шт.
4
542924R2
BRACKET
ASSY, offset mounting, mounted on RH side of hitch
1шт.
4
542925R2
BRACKET
ASSY, offset mounting, mounted on LH side of hitch
1шт.
5
546100R1
BUSHING,31.75mm ID x 34.14mm OD x 31.75mm L
flanged nyliner
2шт.
6
542935R1
BOLT
TAB ASSY, rod
1шт.
18719R1
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2
BOLT, 5/8-11 x 1-3/4 znd sq-nk crg
1шт.
15058R1
BOLT, 5/8 x 1-3/4 pln crg type 1
1шт.
NLS
NO LONGER SERVICED
21/32 x 1-5/16 x 11 ga C-Z
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
7
542937R1
BUSHING
1шт.
21223R1
BOLT, 3/4-10 x 5-3/4 znd hex-hd mach
1шт.
20825R1
WASHER
25/32 x 2 x 11 ga C-Z
4шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
8
546102R1
DISC
DISK, LH
1шт.
9
546103R1
DISC
DISK, RH
1шт.
10
542939R2
ROD
bracket straight, used w/bracket, 542920R1
1шт.
10
542940R2
ROD
bracket offset, used w/bracket, 542924R1 and 542925R1
1шт.
21632R1
COTTER PIN
PIN, 3/16 x 1 C-Z self-opening cot.
2шт.
11
546101R11
COLLAR
W/SET SCREW, 22212R1, rod, 1 per rod
1шт.
22212R1
SCREW
3/8 x 5/8 znd sq-hd cup-pt set
1шт.
12
492963R1
BOLT,5/8" - 11 x 5 1/4"
U-BOLT, 5/8 in., used on 4 x 6 in. frames
1шт.
12
1250812C1
U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L
5/8 in., used on 5 x 7 in. frames
1шт.
12
1250813C1
U-BOLT
5/8 in., used on 7 x 7 in. frames
1шт.
13
542948R1
RAIL, vibra tine extension
1шт.
13
542947R1
RAIL
vibra shank
1шт.
18719R1
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2
BOLT, 5/8-11 x 1-3/4 znd sq-nk crg
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
14
66584D
FITTING
3/16 str drive type lub
1шт.
Выбрано товаров: 36
