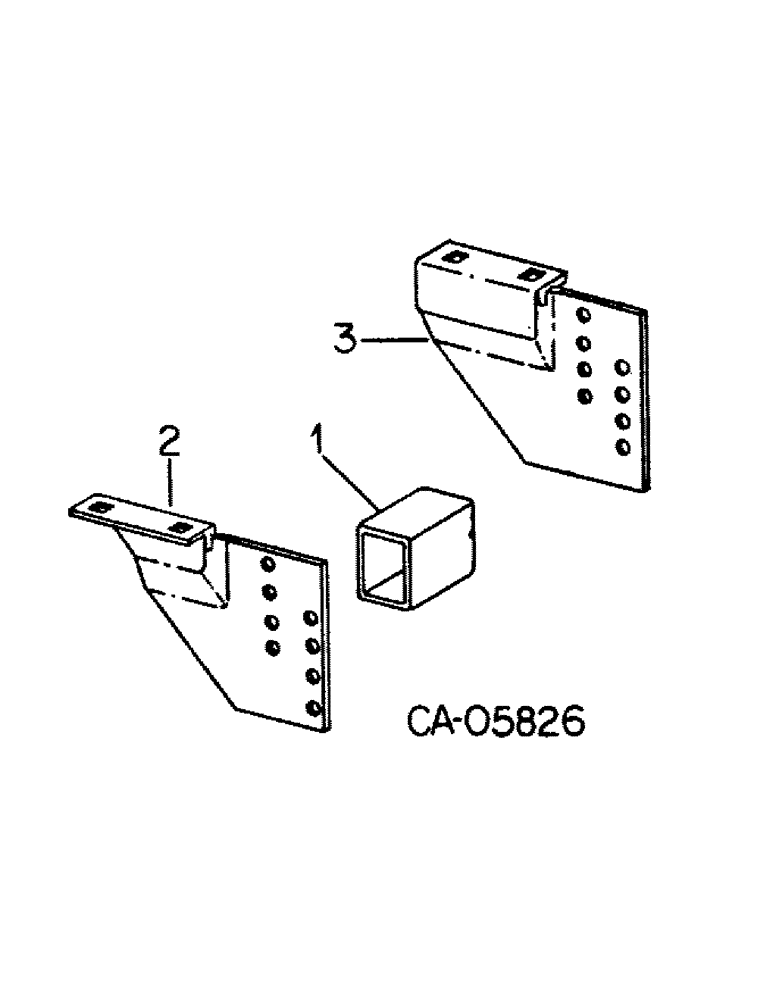

Запчасти Case IH 133 (A-30) - CENTER TOOTH ADJUSTING BRACKET, VIBRA SHANK (09) - CHASSIS

1

141368C1

TUBE,2.5" OD, 146 mm Length

PIPE, rear

1шт.

2

100314C1

BRACKET

adjusting, left, machines built, Serial Range: up-1979

1шт.

2

141366C2

BRACKET

adjusting, left, machines built 1979 and since

1шт.

3

100313C1

BRACKET

adjusting, right, machines built, Serial Range: up-1979

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 crg type 1

4шт.

607895R1

WASHER

.531 x 1.000 x .105

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

189314

BOLT,Hex, 1/2" - 13 x 4 3/4", Gr 5

1/2 x 4-3/4 type 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

3

141367C2

BRACKET

adjusting, right, machines built 1979 and since

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

4шт.

55471R1

BOLT, 1/2 x 6-3/4 type 5

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

flange lock

6шт.
