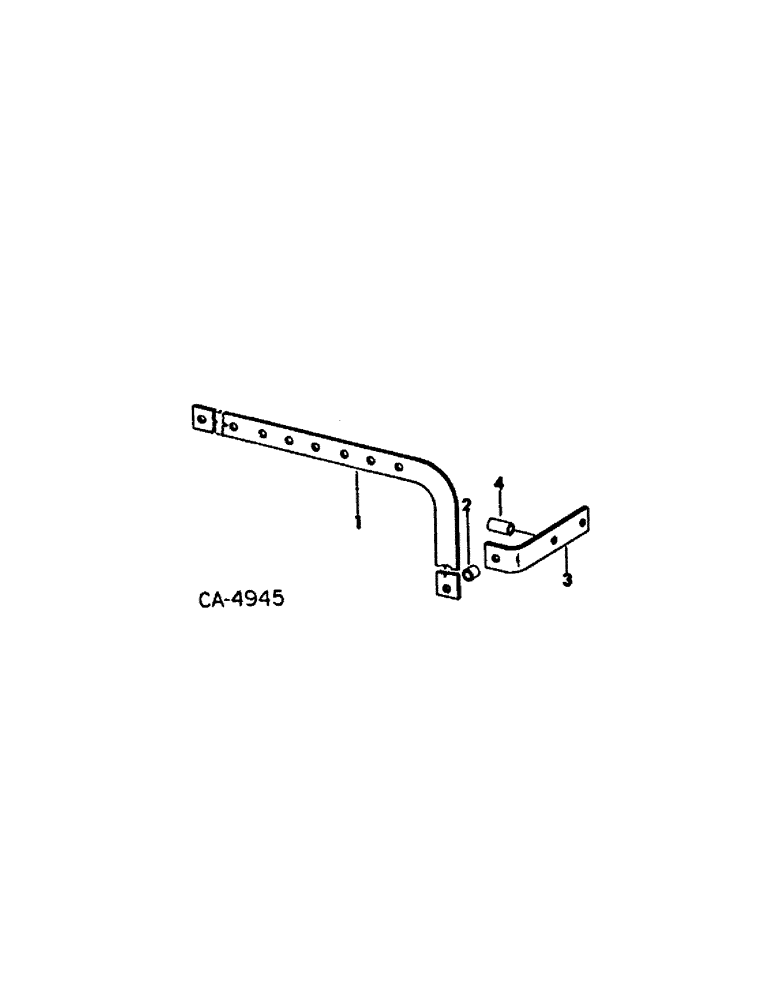

Запчасти Case IH 133 (A-29) - JOCKEY BARS, WIDE ROW CULTIVATORS (09) - CHASSIS

1

542987R1

ARM

jockey bar, wide, 2 per row

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 znd hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

2

113013C1

BUSHING

jockey bar, 5 for unit A, 7 for unit D, 9 for unit G

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 znd hex-hd cap, 1 per bushing

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 C-Z, 1 per screw

1шт.

120384

WASHER,1/2"

LOCK, , 1 per screw 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per screw 1/2"-13, G5

1шт.

3

100422C1

SUPPORT

jockey arch, 5 for unit A, 7 for unit D, 9 for unit G

1шт.

4

100125C1

BUSHING, side plate, 1 per support

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 znd hex-hd mach

1шт.

18812R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

SCREW, 1/2-13 x 3 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.
