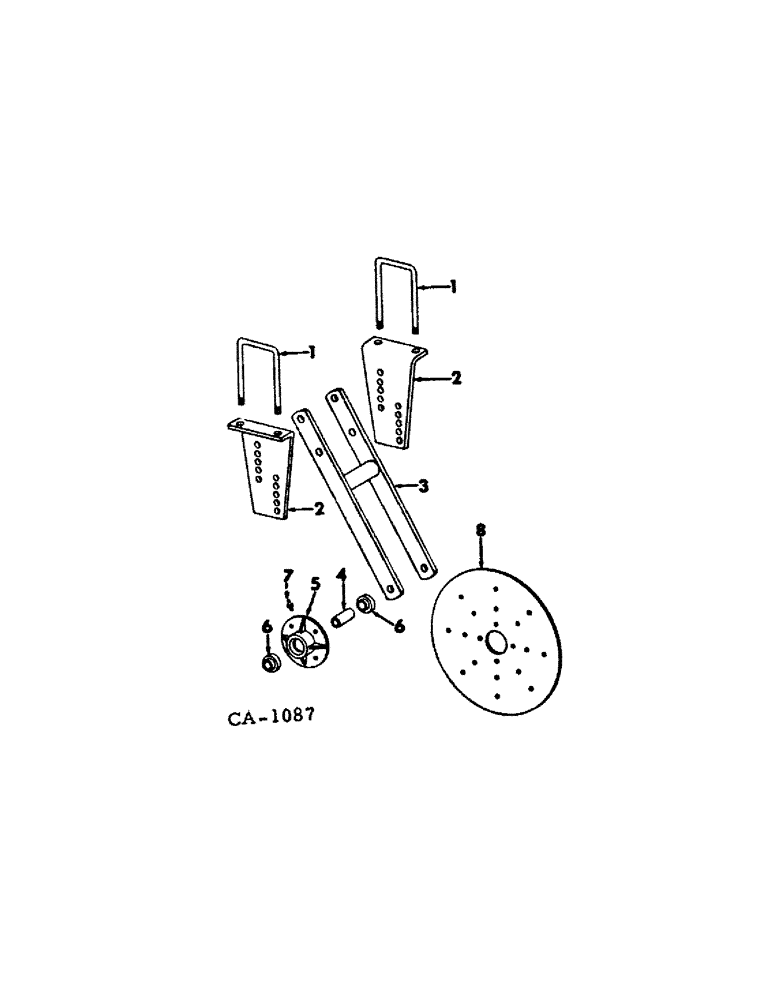

Запчасти Case IH 133 (A-28) - ROLLING GUIDE FIN, RIGID (09) - CHASSIS

1

493002R1

BOLT,5/8" - 11 x 7.2"

U-BOLT

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

2

493000R1

BRACKET

guide fin LH

1шт.

2

493001R1

BRACKET

guide fin RH

1шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

5/8 x 2 znd hex-hd mach

4шт.

17927R1

BOLT,Hex, 5/8" - 11 x 7", Gr 2

5/8 x 7-1/4 hex-hd mach

1шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

5шт.

3

483299R92

FRAME

ASSY

1шт.

4

478435R1

SPACER

brg

1шт.

5

478433R1

HUB

rolling guide fin

1шт.

6

ST503

BALL BEARING,0.629" ID x 47" OD x 0.5512"

BEARING ASSY, ball

2шт.

7

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF2 str lub, in hub

1шт.

8

478436R1

DISC

BLADE, rolling guide fin

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-18 x 1-1/4 znd hex-hd cap

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.
