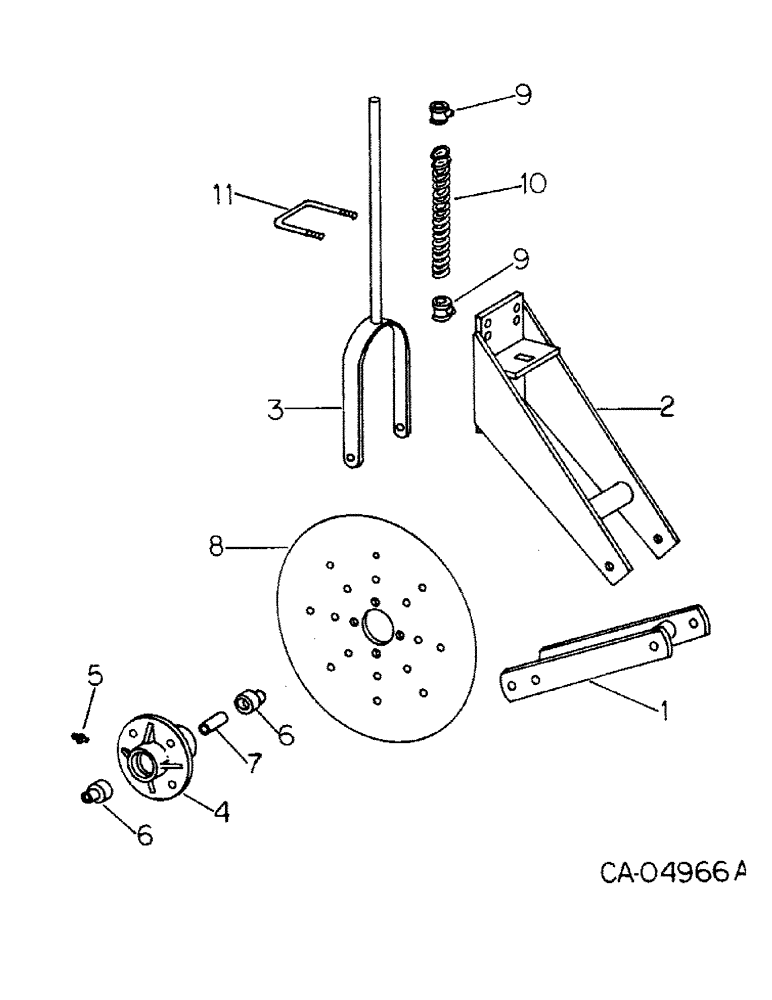

Запчасти Case IH 133 (A-27) - ROLLING GUIDE FIN, FLEXIBLE (09) - CHASSIS

1

490161R1

FRAME

ASSY, guide fin

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 znd hex-hd cap

4шт.

17927R1

BOLT,Hex, 5/8" - 11 x 7", Gr 2

SCREW, 5/8-11 x 7 hex-hd mach

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

5шт.

2

492981R1

BRACKET ASSY, guide fin

1шт.

21695R1

BOLT,Hex, 5/8" - 11 x 5 3/4", Gr 5

5/8-11 x 5-3/4 znd hex-hd cap, 4 for units A, B, C,and AR

1шт.

19823R1

BOLT,Hex, 5/8" - 11 x 7", Gr 5

5/8-11 x 7 znd hex-hd cap, 4 for unit D through 4 and AS

1шт.

21130R1

BOLT,Hex, 5/8" - 11 x 9", Gr 5

5/8 x 9 type 5, 2 for units AE, AF, AG, AT, AU and AV

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

3

490159R1

YOKE

ASSY, pressure rod

1шт.

21636R1

PIN, 1/4 x 1-1/2 C-Z self-opening cot.

1шт.

4

141201C1

HUB

guide fin

1шт.

5

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF2 str lub

1шт.

6

141206C91

BALL BEARING,0.632" ID x 1.7805" OD x 0.735"

ASSY, ball

2шт.

7

141203C1

SPACER

bearing

1шт.

8

141205C2

DISC

BLADE, rolling guide fin

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

4шт.

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT, flange lock

4шт.

9

PO2041X

COLLAR

W/SET SCREW, pressure rod

2шт.

21803R1

SET SCREW,1/2" - 13 x 5/8", Steel

SCREW, 1/2-13 x 5/8 C-Z sq-hd cup-pt set

2шт.

10

SA2017

SPRING

pressure

1шт.

11

(Not used)

1шт.
