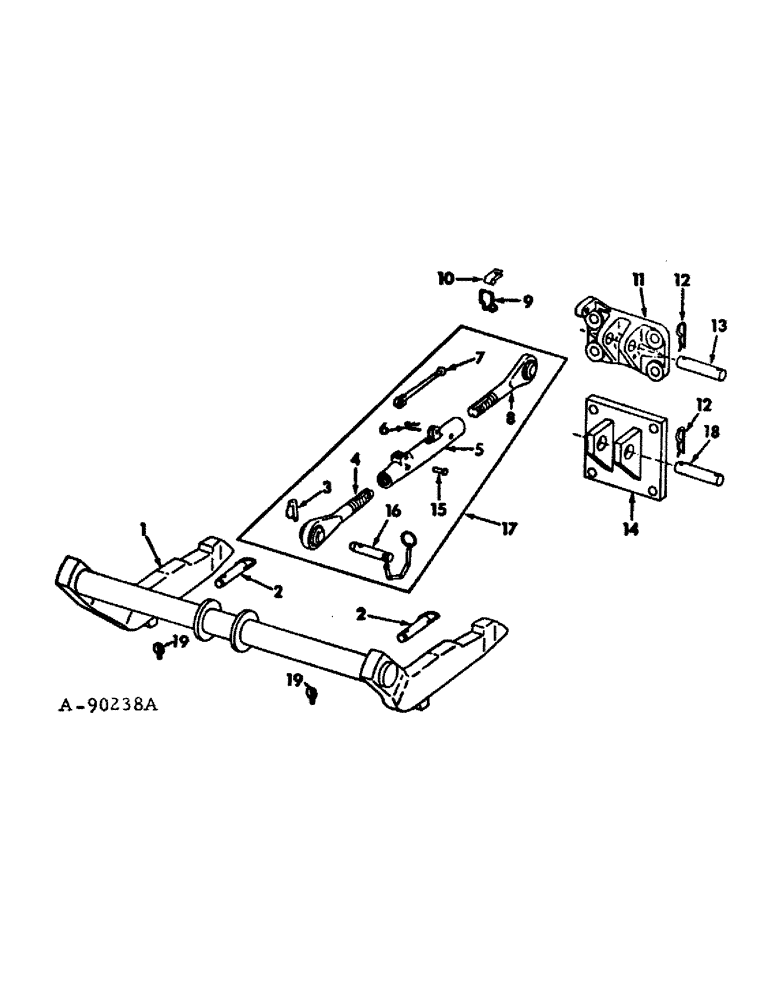

Запчасти Case IH 133 (A-25) - TWO-POINT FAST HITCH, NOT FOR F-656 TRACTOR, UNITS D THROUGH (09) - CHASSIS

1

483567R91

BEAM

ASSY, coupling

1шт.

2

113225C1

PIN

ASSY, ball

2шт.

3

517758R91

SPLIT PIN/SAFETY PIN

PIN, implement pin retaining

1шт.

4

386048R91

LINK

SCREW ASSY, LH thread

1шт.

5

520175R1

CLIP

PIN, quick attachable cot.

1шт.

6

400908R1

TURNBUCKLE

upper link

1шт.

7

392204R1

HANDLE

upper link turnbuckle

1шт.

8

386049R91

LINK

SCREW ASSY, RH thread

1шт.

22061R1

PIN, 1/4 x 1-1/8 C-Z hv coiled spring

2шт.

9

378403R1

ELECTRICAL WIRE

BRACKET, upper link storage

1шт.

10

378404R1

FASTENER

CLIP

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8-16 x 7/8 C-Z hex-hd cap

1шт.

11

(Not used in this application)

1шт.

12

520175R1

CLIP

PIN, quick attachable cot

1шт.

13

(Not used in this application)

1шт.

14

473168R91

BRACKET

ASSY

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 znd hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

15

22634R1

PIN,3/8" x 1 3/4"

3/8 x 1-3/4 C-Z std-hd

1шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

1шт.

16

380563R91

PIN

ASSY, upper link implement

1шт.

17

400907R92

LINK

ASSY, upper, consists of ref nos 3 through 8, 15 and 16

1шт.

18

473171R1

PIN

1шт.

21636R1

PIN, 1/4 x 1-1/2 C-Z self-opening cot.

1шт.

19

373025R91

PIN ASSY.

PIN ASSY, quick attachable

2шт.
