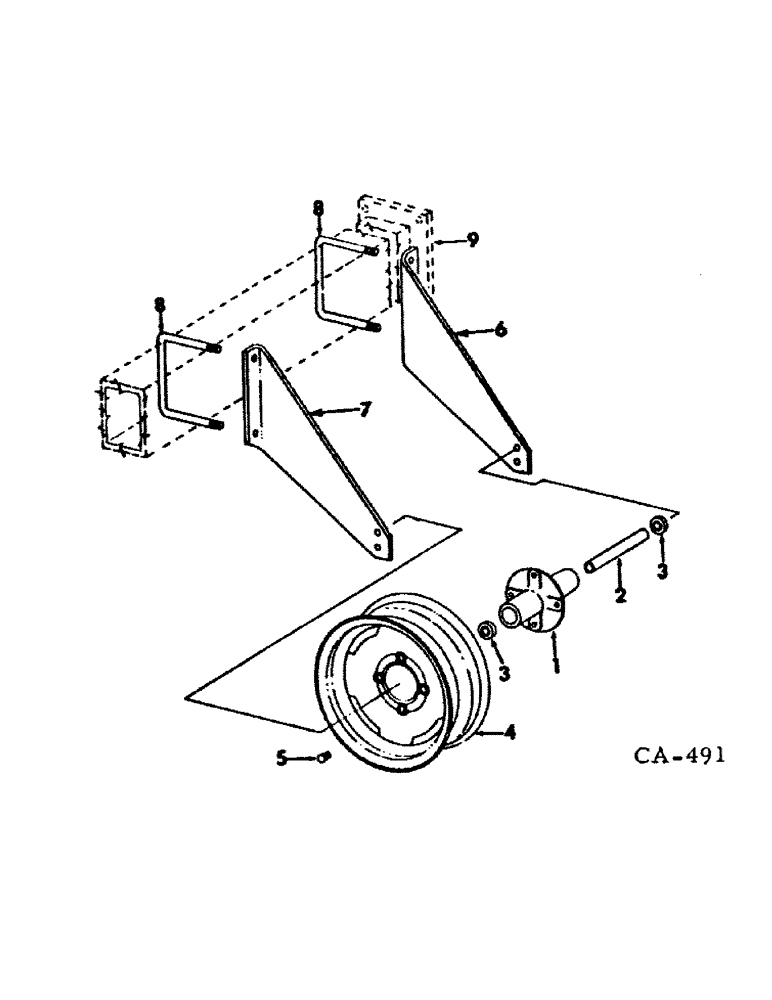

Запчасти Case IH 133 (A-24) - TOOL BAR CARRYING WHEELS (09) - CHASSIS

1

465418R2

HUB

wheel

2шт.

181700

BOLT,Hex, 1/2" - 20 x 1 1/2", Gr 5

1/2-NF x 1-1/2 type 5

8шт.

453770R1

WHEEL NUT

1/2-20 wheel hub std

8шт.

2

465423R1

PIPE

SPACER, pipe

2шт.

3

611050R91

BALL BEARING,0.638" ID x 1.5748" OD x 0.72"

ball, replaces 666624R91

4шт.

4

463036R1

WHEEL (STEERING)

WHEEL, 14 in.

2шт.

387841R91

VALVE

TR-413 w/core & cap

1шт.

4

455169R92

WHEEL

15 in.

2шт.

387897R91

VALVE STEM

VALVE, TR-415 w/core & cap

1шт.

5

(Not used in this application)

1шт.

6

492997R1

ARM, wheel LH

2шт.

7

492998R1

ARM, wheel RH

2шт.

18065R1

BOLT,Hex, 5/8"-11 x 12", G2

5/8 x 12 hex-hd mach

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

8

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

wheel arm, used on 5 x 7 in. frames

1шт.

8

1250813C1

U-BOLT

wheel arm, used on 7 x 7 in. frames

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

9

TUBE ASSY, refer to frame unit

1шт.
