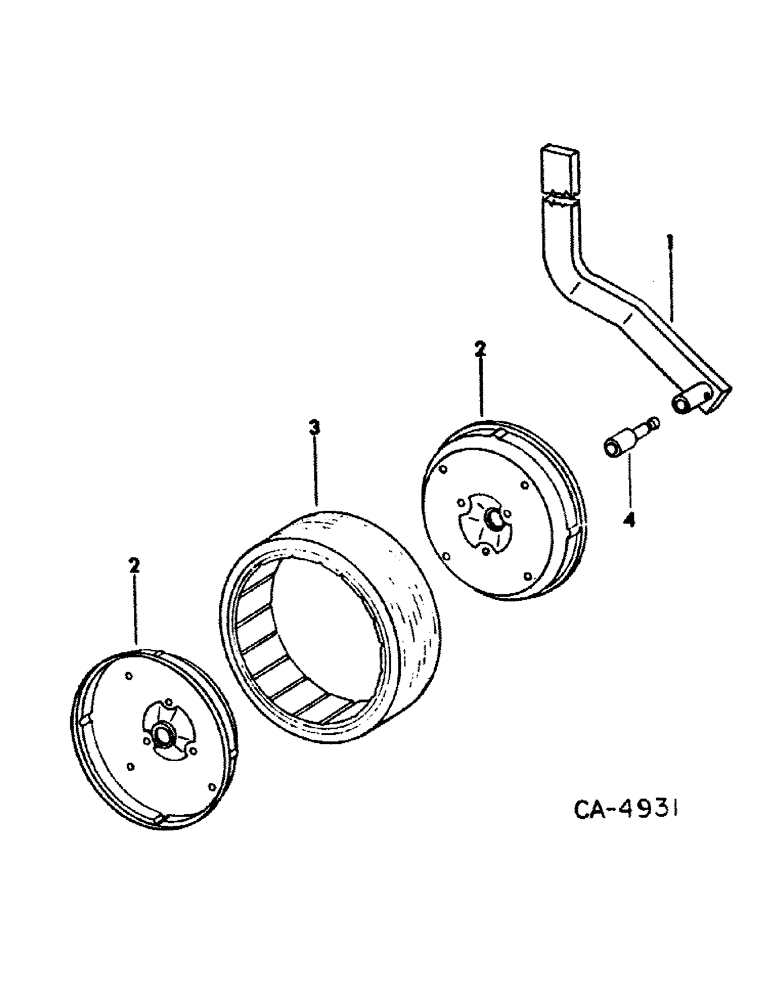

Запчасти Case IH 133 (A-22) - GAUGE WHEEL (09) - CHASSIS

1

492843R1

SUPPORT ASSY.

STANDARD ASSY, RH, vibra tine, 1 per linkage

1шт.

1

137490C1

SUPPORT ASSY.

STANDARD ASSY, machines built 1977 & since, vibra shank, 1 per linkage

1шт.

1

113168C1

SUPPORT ASSY.

STANDARD ASSY, LH, machines built 1976 & below, vibra shank, 1 per linkage

1шт.

2

526768R1

WHEEL

RIM, gauge wheel

2шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16-18 x 5/8 znd hex-hd mach

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

flange lock

7шт.

3

516492R1

TYRE/TIRE

TIRE, 4 x 12 semi-pneumatic

1шт.

4

526769R91

BALL BEARING,30mm OD x 98.04mm L

BEARING ASSY

1шт.

22227R1

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, 3/8-16 x 3/8 znd hex. soc-hd f-pt set

1шт.
