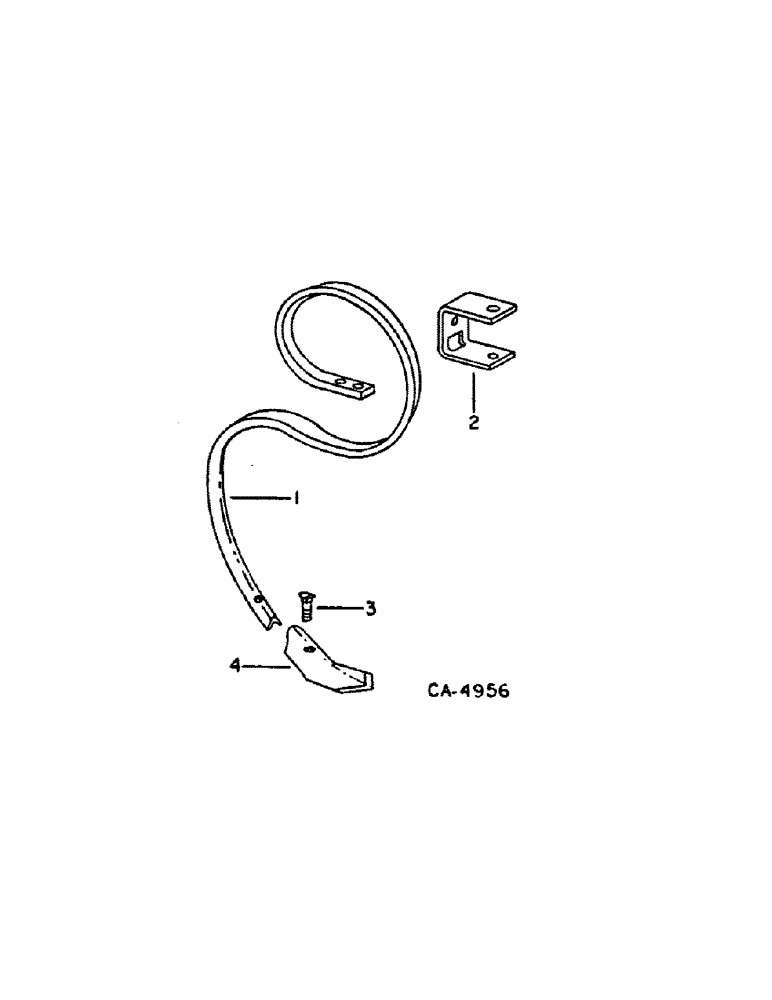

Запчасти Case IH 133 (A-20) - TOOLING EQUIPMENT, VIBRA TINE TOOLING (09) - CHASSIS

1

734553R2

TINE

SHANK, tine, 21 for unit A, 19 for unit B, 31 for unit C, D, K and U, 25 for units E, L, and V, 41 for units F, G, M, M, W, Z & AQ, 37 for units H and AA, 61 for units J and AB, 81 for units AG

1шт.

2

100275C1

CLAMP

tooth, 1 per shank

1шт.

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

1/2-13 x 3-1/2 znd hex-hd, 1 per clamp

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

flange lock, 1 per bolt

1шт.

3

138544C1

PLOW BOLT,3/8" - 16 x 1.58" Cl 5B

BOLT, special shovel, 1 per shank

1шт.

21403R1

WASHER

.406 x 1.000 x .120, 1 per bolt

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

4

100365C1

SHOVEL

SWEEP, 2-1/2 in.

1шт.

4

100366C1

SWEEP

4 in. vibra tine, units A through G

1шт.

4

100367C1

SWEEP

7 in. vibra tine, units A through G

1шт.

4

811191C1

POINT

SWEEP, double pointed vibra tine

1шт.
