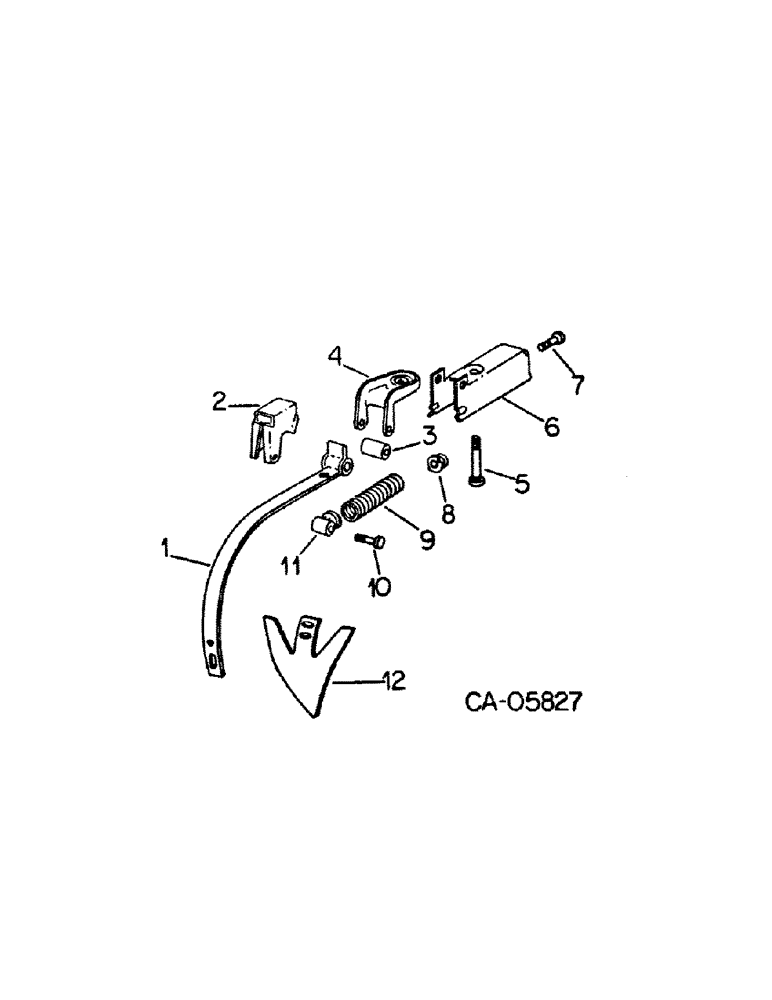

Запчасти Case IH 133 (A-20[A]) - VIBRA SHANK (09) - CHASSIS

1

813293C1

SHANK

replaces 591549R1

1шт.

2

591542R1

BRACKET

CLAMP, 1 per shank

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5, 1 per clamp

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per clamp 1/2"-13, G5

1шт.

3

811354C1

BUSHING

shank, 1 per shank

1шт.

4

811353C1

CLAMP

top, 1 per shank

1шт.

20835R1

NUT,1/2"-13, G8

1/2 pln type 8, 1 per clamp

1шт.

811352C1

BOLT,1/2" - 13 x 3 1/2"

1/2-13 x 3-1/2 hex-hd type 8, 1 per clamp

1шт.

5

591540R2

BOLT,Spcl, 1/2" - 13 x 4", Gr 5

BOLT, 1/2-13 x 4 C-Z special, 1 per shank

1шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2 ext lock, 2 per bolt

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 PHC p/t lock type 5, 1 per bolt

1шт.

6

811357C1

SUPPORT

BRACKET, 1 per shank

1шт.

7

597671R1

BOLT,1/2" - 13 x 2.06", Gr 20

shank bracket, 1 per shank

1шт.

8

591547R1

PLUG

spring, 1 per shank

1шт.

9

591546R1

SPRING

1 per shank

1шт.

10

591545R1

PIN,13.08mm OD x 61.98mm L

special, 1 per shank

1шт.

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), , 1 per shank 3/16" x 3/4"

1шт.

11

591544R1

PLUG

spring, 1 per shank

1шт.

12

591667R2

SHOVEL

SWEEP, LH 9 in. clipped wing, machines built, Serial Range: up-1978

1шт.

12

137191C1

SHOVEL

SWEEP, LH 9 in. clipped wing, machines built 1979 & since

1шт.

12

591668R2

SHOVEL

SWEEP, RH 9 in. clipped wing, machines built, Serial Range: up-1978

1шт.

12

137192C1

SHOVEL

SWEEP, RH 9 in. clipped wing, machines built 1979 & since

1шт.

12

597461R1

SHOVEL

SWEEP, 12 in. full, machines built, Serial Range: up-1978

1шт.

12

137453C1

SHOVEL

SWEEP, 7 in. full, machines built 1979 & since

1шт.

12

591590R2

TIP

SWEEP, 9 in. full, machines built, Serial Range: up-1978

1шт.

12

137190C1

SHOVEL

SWEEP, 9 in. full, machines built 1979 & since

1шт.

21148R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/8", Gr 2

BOLT, 7/16 x 1-3/8 plow type 1, 2 per sweep

1шт.

893862R1

WASHER

.469 x 1.250 x .105, 1 per sweep

1шт.

271501

SOCKET

NUT, 7/16 type 5, 2 per sweep

1шт.
