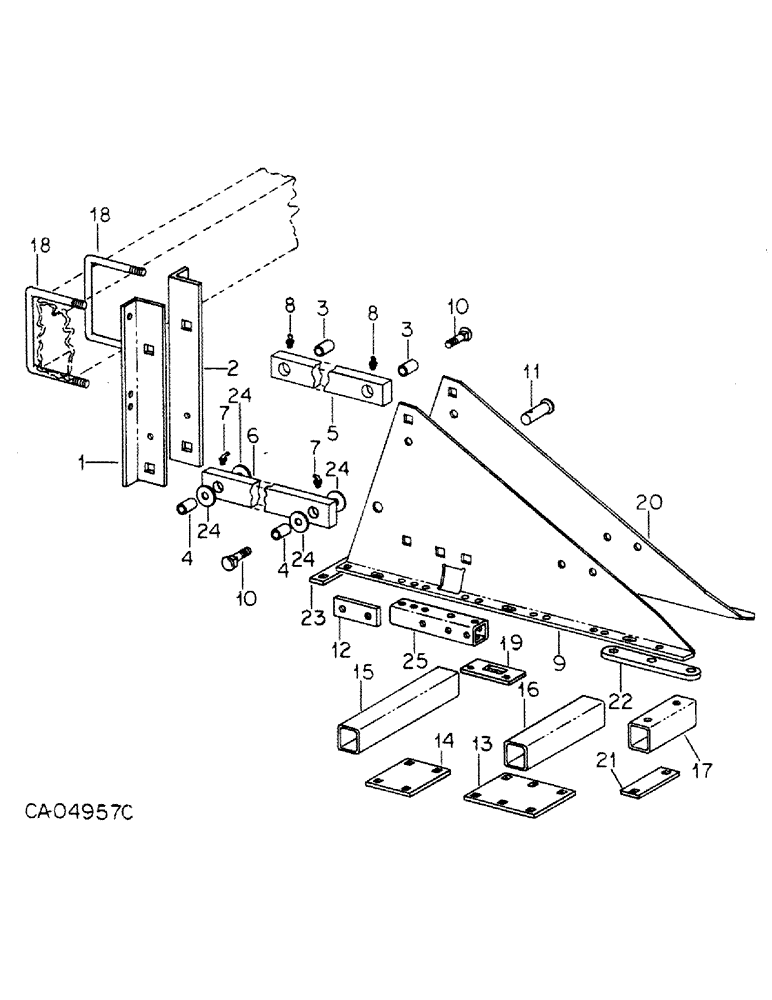

Запчасти Case IH 133 (A-18) - PARALLEL LINKAGE, QUANTITIES ARE PER LINKAGE (09) - CHASSIS

1

100292C1

ANGLE

bracket left, for vibra tines

1шт.

1

113131C1

ANGLE

bracket left, for vibra shanks

1шт.

2

100293C1

ANGLE

bracket right, for vibra tines

1шт.

2

113132C1

ANGLE

bracket right, for vibra shanks

1шт.

18723R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 2

BOLT, 5/8-11 x 2-3/4 sq-nk crg

2шт.

141773C1

NUT

2шт.

3

125541C1

SPACER

link upper, bushing, 2 per link

1шт.

4

100126C4

BUSHING

link lower, 2 per link, machines built, Serial Range: prior-1979

1шт.

5

100286C3

LINK

upper parallel

1шт.

6

141127C1

LINK

lower parallel, replaces 100124C1

1шт.

7

19700R91

FITTING

3/16 45 deg drive lub, 2 per lower link, machines built, Serial Range: prior-1979

1шт.

8

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive lub, 2 per upper link, machines built prior to 1979

1шт.

9

100135C2

PLATE

linkage left, cultivators w/5 tools per row

2шт.

9

100287C1

PLATE

linkage left, cultivators w/3 tools per row

1шт.

10

100291C1

CARRIAGE BOLT

BOLT, carriage

2шт.

141773C1

NUT

2шт.

11

21670R1

HEADED PIN,3/4" x 2 1/4"

PIN, 3/4 x 2-1/4 std-hd

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

12

100185C1

CLIP

gauge wheel

1шт.

18720R1

SCREW,Short NK, 5/8"-11 x 2", G2

BOLT, 5/8 x 2 crg type 1

2шт.

141773C1

NUT

2шт.

13

100130C2

CLIP

inner, vibra tine cultivators w/5 tools per row, not used on outer linkage

1шт.

18710R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 2

BOLT, 1/2 x 3 crg type 1, 6 per clip

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

flange lock, 1 per bolt

1шт.

13

100387C2

CLIP

inner, vibra shank cultivators w/5 tools per row, not used on outer row

1шт.

18712R1

BOLT,Short NK, 1/2"-13 x 4", G2

1/2 x 4 crg type 1, 6 per clip

1шт.

607895R1

WASHER

.531 x 1.000 x .105, 2 per clip

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

14

100388C2

CLIP, 1 used outer linkage on vibra tine cultivators w/3 tools per row, 2 used per outer linkage on vibra tine cultivators w/5 tools per row

1шт.

18710R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 2

BOLT, 1/2 x 3 crg type 1

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

flange lock, 1 per bolt

1шт.

14

100389C2

CLIP

1 used per outer linkage vibra shank cultivators w/3 tools per row, 2 used per outer linkage on vibra shank culitivators w/5 tools per row

1шт.

18711R1

BOLT,Short NK, 1/2"-13 x 3 1/2", G2

1/2 x 3-1/2 crg type 1, 4 per clip

1шт.

607895R1

WASHER

.531 x 1.000 x .105, 2 per clip

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock, 1 per bolt

1шт.

15

100290C1

TUBE, narrow row front, vibra tine 13" Length

2шт.

15

100129C1

TUBE,18" Length

wide row front, vibra tine

2шт.

15

100294C2

TUBE,327 mm Length

narrow row front, vibra shank

2шт.

15

100295C2

TUBE,449 mm Length

wide row front, vibra shank

2шт.

16

100128C1

TUBE

center, vibra tine cultivators w/5 tools per row

2шт.

16

100296C2

TUBE,256 mm Length

center, vibra shank cultivators w/5 tools per row

2шт.

17

100127C1

TUBE,6" Length

rear, vibra tine

1шт.

17

100452C1

TUBE,6" Length

rear, vibra shank

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1-1/4 sq-nk crg

2шт.

387374R1

RING,70mm ID x 76.2mm OD x 6.43mm Thk

NUT, flange lock

2шт.

18

492963R1

BOLT,5/8" - 11 x 5 1/4"

U-BOLT, head bracket, for 4 x 6 in. frames

2шт.

18

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

head bracket, for 5 x 7 in. frames

2шт.

18

1250813C1

U-BOLT

head bracket, for 7 x 7 in. frames

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex, 2 per u-bolt

1шт.

19

113133C1

SUPPORT

gauge wheel, 1 per standard

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 type 1

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

flange lock

2шт.

20

100136C2

PLATE

linkage right, cultivators w/5 tools per row

1шт.

20

100288C1

PLATE

linkage right, cultivators w/3 tools per row

1шт.

21

125721C1

BAR

rear tube, vibra shank

1шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 crg type 1

2шт.

120384

WASHER,1/2"

LOCK, , Vibra shank 1/2"

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

flange lock

2шт.

22

100453C1

STRAP

vibra shank

2шт.

607895R1

WASHER

.531 x 1.000 x .105

2шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 type 1

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

2шт.

23

137012C1

BAR

front stop, used on units AE, AF & AG

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

24

141126C2

WASHER

plastic wear

4шт.

25

141129C1

TUBE,1.5" OD, 77.8, 65 mm Length

spacer

2шт.

22012R1

CARRIAGE BOLT,Hex, 1/2" - 13 x 5 1/4", Gr 2

BOLT, 1/2 x 5-1/4 crg type 1

8шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

flange lock

8шт.
