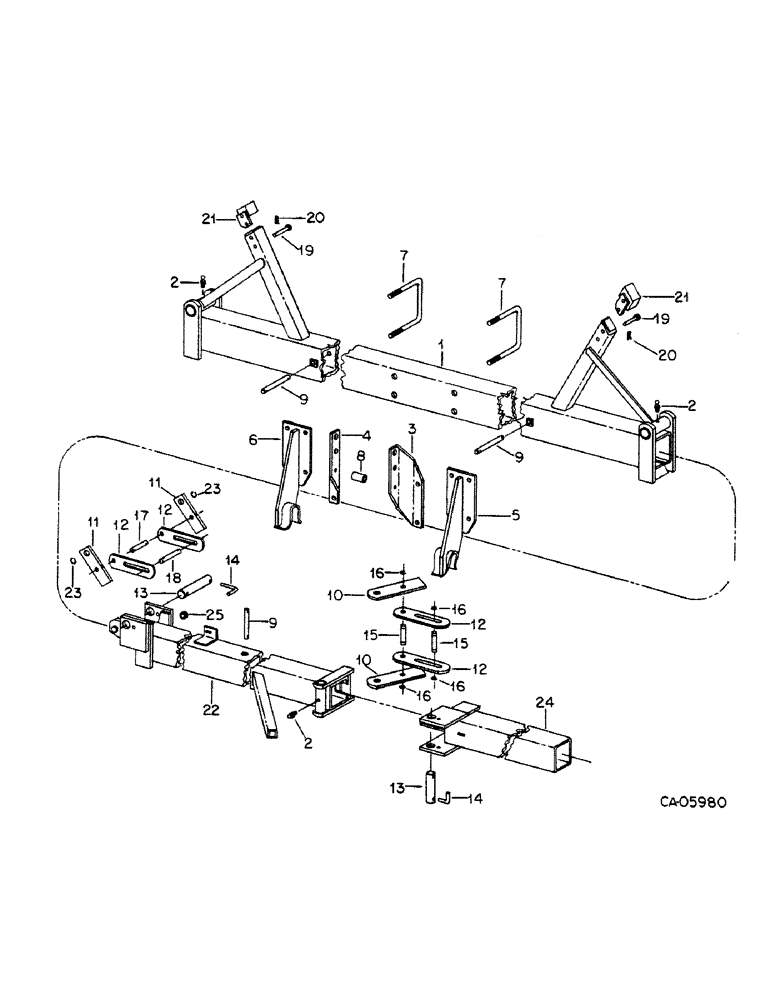

Запчасти Case IH 133 (A-08) - FRAME, HYDRAULIC FOLDING FLEX, UNITS AE, AF, AG AND AV (09) - CHASSIS

1

100342C2

CENTER SECTION ASSY, 7 x 7

1шт.

2

25391R1

FITTING

1/4 str lub

2шт.

3

128825C1

PLATE, mast LH

1шт.

4

128826C1

PLATE

mast RH

1шт.

5

492931R1

BRACKET

ASSY, left hitch

1шт.

6

492932R1

BRACKET

ASSY, right hitch

1шт.

7

493841R1

U-BOLT

7/8, 7 x 7

6шт.

23831

SEALING RING COLLAR

NUT, 7/8 type 8

12шт.

8

462425R1

SPACER

mast

1шт.

21184R1

BOLT,Hex, 3/4"-10 x 4 1/4", G2

3/4-10 x 4-1/4 mach

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

9

100358C1

PIN

cyl anchor

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

8шт.

10

64804C1

LATCH

hinge, matched set

2шт.

11

113473C2

SUPPORT

hinge

4шт.

12

113307C1

LINK

cyl hold-up

8шт.

13

100326C1

PIN

hinge

4шт.

12431R1

COTTER PIN,1/2" x 2"

PIN, 1/2 x 2 pln cot

4шт.

14

491601R2

PIN

pivot lock

4шт.

15

62926C1

PIN

cyl & stop, outer wing

4шт.

22440R1

WASHER

1.031 x 1.750 x 027

8шт.

16

758318C1

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

8шт.

17

100324C2

PIN

cyl & latch

2шт.

26569R1

BOLT

BOLT, 1/4 x 2-3/4 PHC type 8

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

18

100323C1

PIN

hinge hold-up

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

19

PIN, locking, machines built up to 1978, discontinued for service

2шт.

19

100400C1

PIN

locking, machines built 1978 & since

2шт.

20

517843R1

COTTER PIN

PIN, quick attachable cot.

2шт.

21

STOP ASSY, machines prior to 1978, discontinued for service

2шт.

21216R1

BOLT, 5/8 x 4-1/4 type 1

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

22

125755C1

SECTION ASSY, inner wing LH

1шт.

22

125756C1

SECTION ASSY, inner wing RH

1шт.

608700R1

WASHER

1.281 x 2.000 x .054

4шт.

23

609053R1

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

4шт.

24

125753C1

SECTION ASSY, outer wing

2шт.

25

100247C1

GROMMET

4шт.
