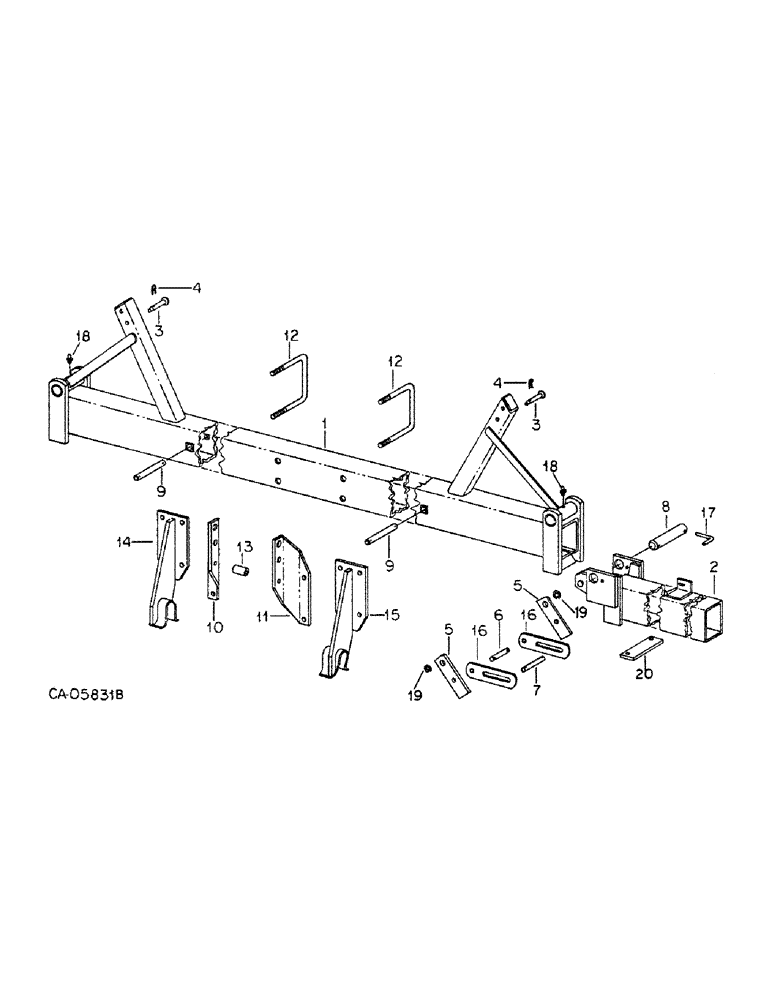

Запчасти Case IH 133 (A-07) - FRAME, HYDRAULIC FOLDING FLEX AND NON-FLEX, UNITS Z THROUGH (09) - CHASSIS

1

100488C2

ASSEMBLY

SECTION ASSY, center, 7 x 7, units Z, AC, AM and AT

1шт.

1

141459C1

SECTION ASSY, center, 7 x 7, units AA, AB, AD & AN

1шт.

2

100490C2

SECTION ASSY, wing, 7 x 7, units Z, AC, AM, and AU

1шт.

2

100336C2

SECTION ASSY, wing, 7 x 7, units AA, AD, & AN

1шт.

608700R1

WASHER

1.281 x 2.000 x .054

4шт.

3

100400C1

PIN

locking

2шт.

4

517843R1

COTTER PIN

PIN, quick attachable cot.

2шт.

5

77246C1

CATCH

LATCH, hinge, matched set, non-flex

2шт.

5

113499C1

SUPPORT

latch, flex

4шт.

5

113473C2

SUPPORT

latch, machines, Serial Range: prior-1979

4шт.

6

100324C2

PIN

cyl & latch

2шт.

26569R1

BOLT

BOLT, 1/4 x 2-3/4 PHC type 8

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

7

100323C1

PIN

hinge hold-up

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

8

100326

PIN, hinge

2шт.

9

100358C1

PIN

cyl anchor

2шт.

10

100298

PLATE, mast RH

1шт.

11

100297C1

PLATE

mast LH

1шт.

12

493841R1

U-BOLT

7 x 7

1шт.

23831R1

NUT,7/8"-9, G8

7/8 type 8

2шт.

13

462425R1

SPACER

upper link

1шт.

21184R1

BOLT,Hex, 3/4"-10 x 4 1/4", G2

3/4-10 x 4-1/4 mach

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

14

492932R1

BRACKET

ASSY, hitch RH

1шт.

15

492931R1

BRACKET

ASSY, hitch LH

1шт.

16

113307C1

LINK

cylinder hold-up

4шт.

17

491601R2

PIN

pivot lock, L

2шт.

12431R1

COTTER PIN,1/2" x 2"

PIN, 1/2 x 2 pln cot

2шт.

18

25391R1

FITTING

1/4 str lub

2шт.

19

609053R1

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

4шт.

20

125716C1

BAR

positioner, machines built 1979 & since

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.
