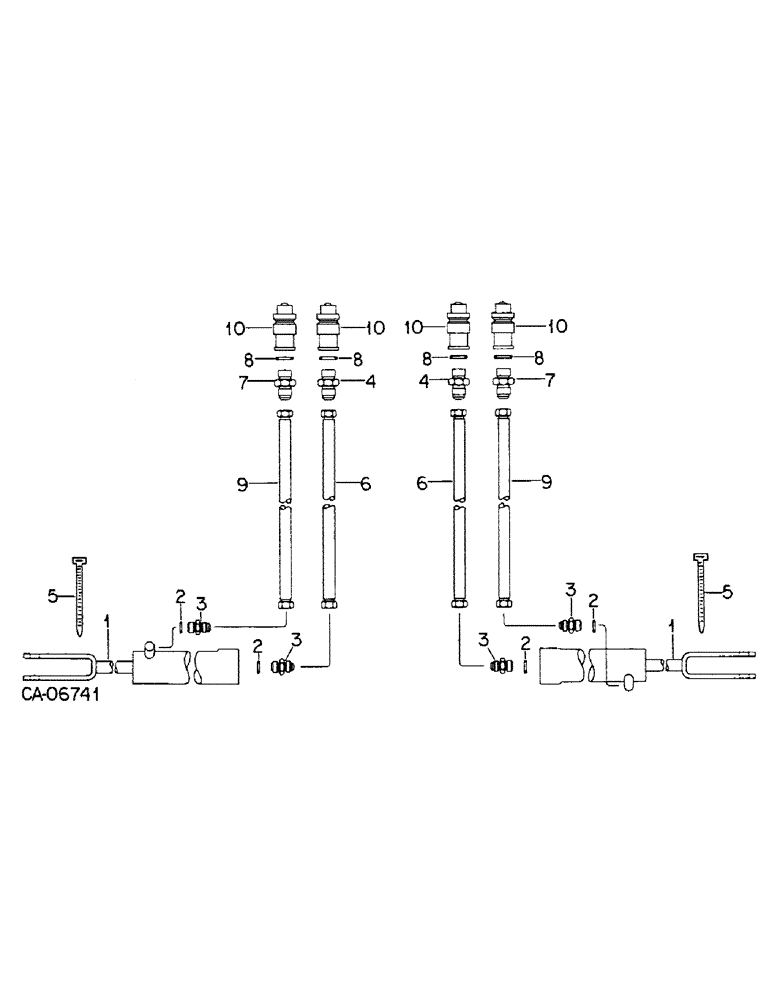

Запчасти Case IH 133 (A-06) - HYDRAULIC CONNECTIONS, UNITS U THROUGH Y, MACHINES BUILT (09) - CHASSIS

1

108606C91

CYLINDER

ASSY, 3 x 12 hydraulic, see cyl, 1 for components

2шт.

62581C91

SEAL KIT

cylinder o-ring and seal service

1шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

4шт.

3

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 znd 37 deg hyd flared tube short swivel

4шт.

4

141463C1

UNION

RESTRICTOR

2шт.

5

STRAP, hyd hose plastic tie, discontinued for service

2шт.

6

141445C1

HOSE

88 in. 3/8 in. plastic

2шт.

7

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

REDUCER

2шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

4шт.

9

141446C1

HOSE, 75 in. 3/8 in. hyd plastic

2шт.

10

544787R91

COUPLING, BREAK AWAY

COUPLER, male

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.
