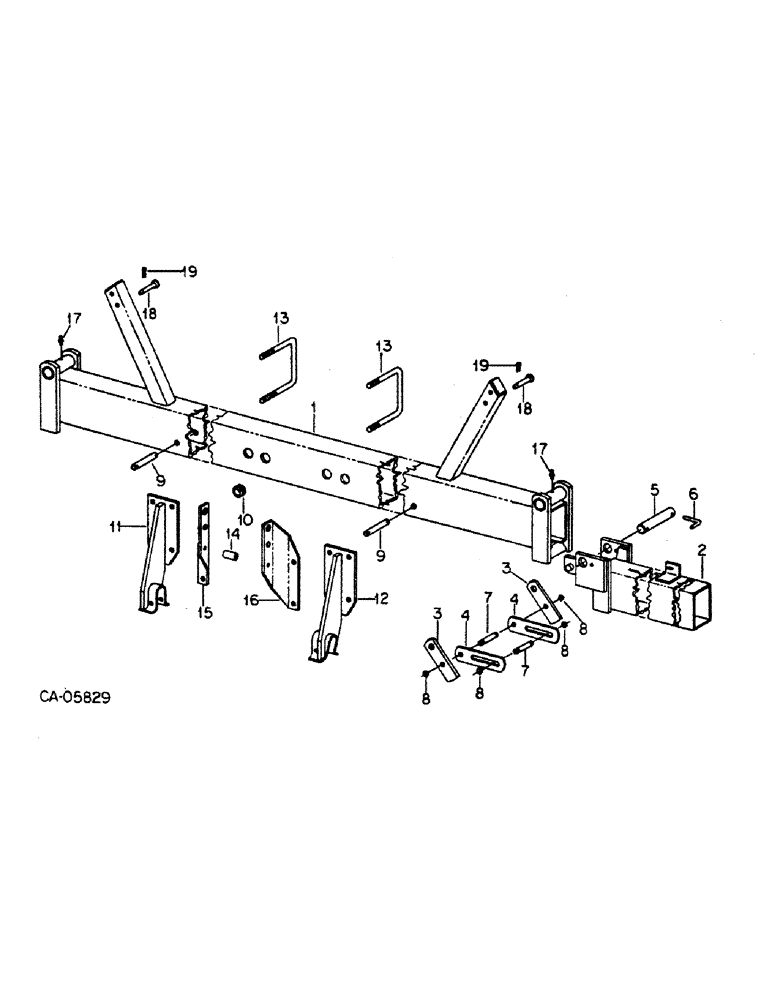

Запчасти Case IH 133 (A-04) - FRAME, HYDRAULIC FOLDING RIGID, UNITS U THROUGH Y & AL (09) - CHASSIS

1

100277C1

ASSEMBLY

SECTION ASSY, center, 5 x 7

1шт.

2

100283C1

SECTION ASSY, wing, 5 x 7

2шт.

3

64804C1

LATCH

hinge, matched set

2шт.

4

113307C1

LINK

cylinder hod-up

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

5

100054C1

PIN

hinge

2шт.

6

491601R2

PIN

pivot lock, L

2шт.

12431R1

COTTER PIN,1/2" x 2"

PIN, 1/2 x 2 pln cot

2шт.

7

62926C1

PIN

cylinder & stop

4шт.

22440R1

WASHER

1.031 x 1.750 x .027

8шт.

8

758318C1

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

8шт.

9

62927C1

PIN

cyl anchor

2шт.

10

100247C1

GROMMET

4шт.

11

492932R1

BRACKET

ASSY, hitch RH

1шт.

12

492931R1

BRACKET

ASSY, hitch LH

1шт.

13

493468R1

BOLT,7/8" - 9 x 6 1/2"

U-BOLT, 5x7

6шт.

23831R1

NUT,7/8"-9, G8

7/8 type 8

12шт.

14

462425R1

SPACER

A, upper link

1шт.

21184R1

BOLT,Hex, 3/4"-10 x 4 1/4", G2

3/4-10 x 4-1/4 mach

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

15

100298C1

PLATE

mast RH

1шт.

16

100297C1

PLATE

mast LH

1шт.

17

25391R1

FITTING

1/4 str lub

2шт.

18

490048R1

PIN

locking

2шт.

19

517843R1

COTTER PIN

PIN, quick attachable cot.

2шт.
