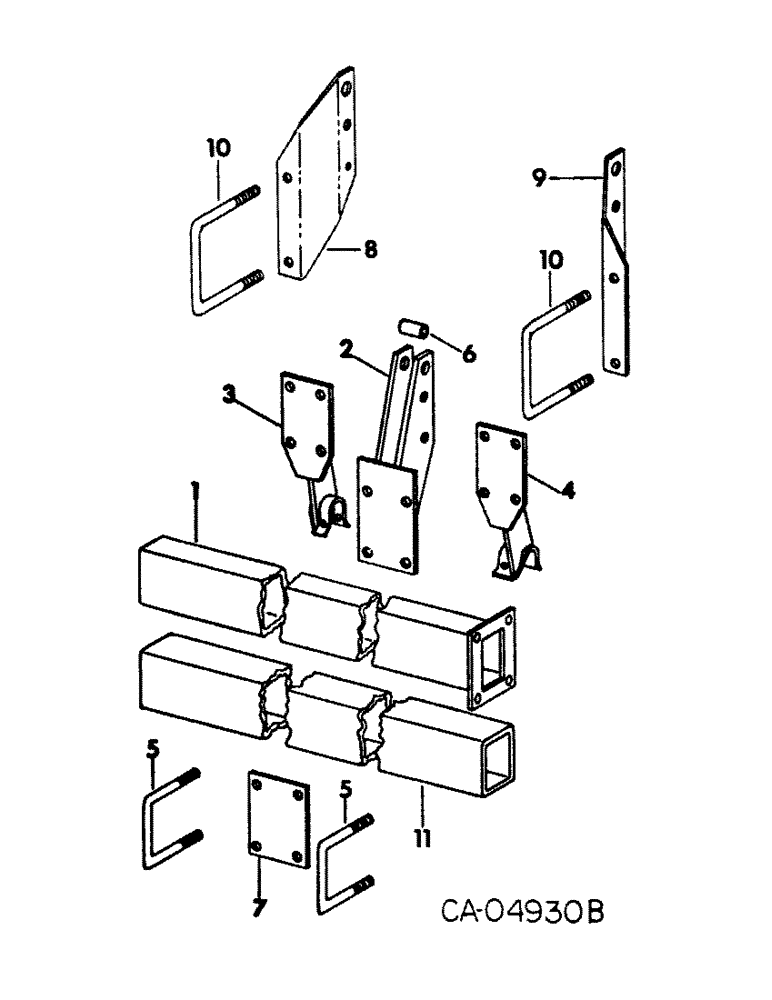

Запчасти Case IH 133 (A-03) - FRAME AND HITCH MAST, UNITS A THROUGH T, AH, AJ, AK, AP, AQ, (09) - CHASSIS

1

492943R3

TUBE

ASSY, 5 x 7 x 250 in., units D, E, F, K, L, N, R, S, and AR

1шт.

1

FRAME ASSY, 5 x 7330 in., units G, discontinued for service

1шт.

1

FRAME ASSY, 5 x 7 x 370 in., units H & J, discontinued for service

1шт.

1

542154R2

FRAME

ASSY, units AP, AQ and AS

1шт.

1

492924R2

TUBE ASSY, 7 x 7 x 370 in., units AH, AJ & AK

1шт.

2

492928R1

SUPPORT

ASSY, hitch mast, units D through J

1шт.

22485R1

BOLT,5/8" x 7 1/4", Gr 5

5/8 x 7-1/4 type 5

2шт.

19824R1

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

5/8 x 7-1/4 type 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

3

492931R1

BRACKET

ASSY, hitch LH, units D thru N, R, S, T, AG, AJ, AK, AP, AQ, and AS

1шт.

4

492932R1

BRACKET

ASSY, hitch RH, units D thru N, F, S, T, AH, AJ, AK, AP AQ, and AS

1шт.

5

493468R1

BOLT,7/8" - 9 x 6 1/2"

U-BOLT, 7/8 in., units D through N, R, S and T

4шт.

5

493841R1

U-BOLT

7/8-9, units AH, AJ, AK, & AQ

4шт.

23831R1

NUT,7/8"-9, G8

7/8 type 8

8шт.

ITEM#5-iF DEALER LOOKING FOR 3/4" U-BOLT FOR A 4X6 FRAME,USE PART 493467R1, CAN BE FOUND ON PAGE A-26.

1шт.

6

462425R1

SPACER

upper link, units D thru N, R, S, T AH, AJ, AK, AP, AQ, and AS

1шт.

21184R1

BOLT,Hex, 3/4"-10 x 4 1/4", G2

3/4 x 1-1/4 znd hex-hd mach

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

7

492966R2

PLATE, mast, units A, B, C, P and Q

1шт.

7

492947R1

PLATE, mast, units D through L, units K, L, M, N, R, S, T.

1шт.

8

100297C1

PLATE

mast LH, AH, AJ, AK, AP, AQ and AS

1шт.

9

100298C1

PLATE

mast RH, units K, L, M, N, R, S, and T, AH, AJ, AK, AP AQ and AS

1шт.

10

493468R1

BOLT,7/8" - 9 x 6 1/2"

U-BOLT, 5x7, units K, L, M, M, R, S, T and AS

1шт.

10

493841R1

U-BOLT

7x7, units AH, AJ, AK, AP, AQ and AS

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

11

100300C1

TUBE, 4 x 6 x 168 in., unit A, P and AR 168" Length

1шт.

11

492959R1

TUBE, 4 x 6 x 190 in. units B, C, and Q

1шт.

11

TUBE, 5 x 7 x 250 in. units K, L, N, R, & S, discontinued for service

1шт.

11

TUBE, 5 x 7 x 330 in., units M and T, discontinued for service

1шт.
