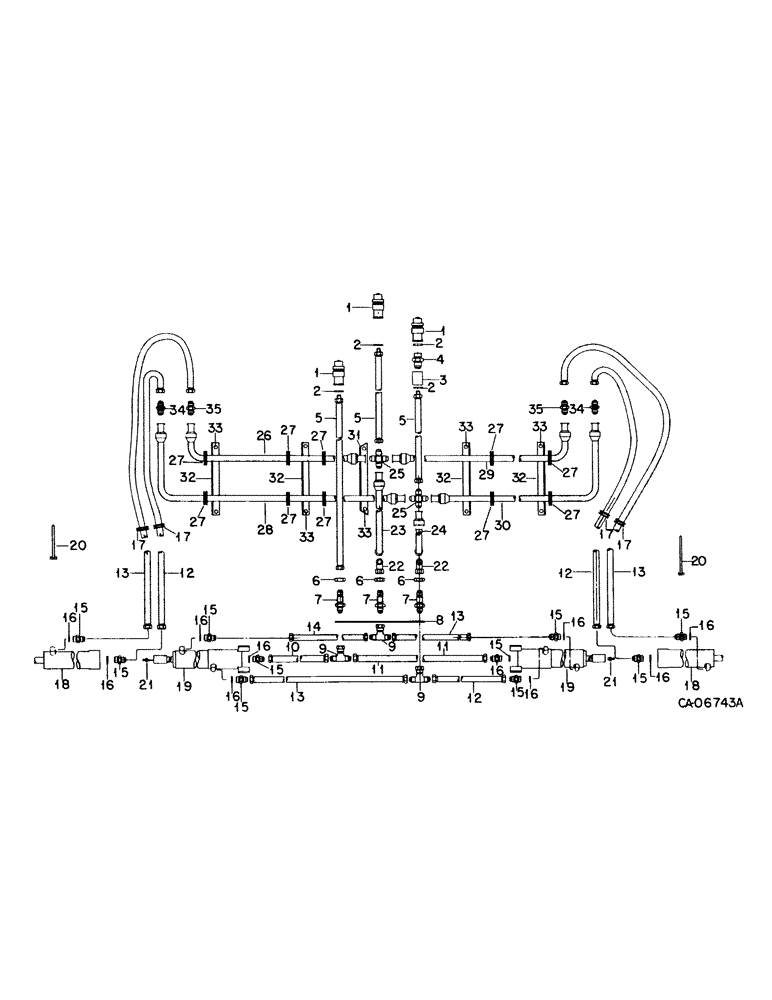

Запчасти Case IH 133 (A-16) - HYDRAULIC CONNECTIONS, UNITS AE, AF, AG AND AV, MACHINES (08) - HYDRAULICS

1

544787R91

COUPLING, BREAK AWAY

COUPLER, male

3шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

4шт.

3

141462C1

UNION

REDUCER, special

1шт.

4

141463C1

UNION

RESTRICTOR

1шт.

5

541629R1

HOSE

46 in. hyd

1шт.

6

9403295

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, 7/8-14 znd bulkhead lock

3шт.

7

9403256

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

UNION, 7/8-14 37 deg hyd flared tube bulkhead

3шт.

8

119984R1

BAR, hyd hose plate

1шт.

9

9410308

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

7/8-14 znd 37 deg hyd flared tube swivel

3шт.

10

100383C1

HOSE

59 in. hyd

1шт.

11

100281C1

HOSE

75 in. hyd

1шт.

12

100384C1

HOSE

65 in. hyd

3шт.

13

119719C1

HOSE

79 in. hyd

4шт.

14

141200C1

HOSE

92 in. hyd

1шт.

15

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 znd 37 deg hyd flared tube short swivel

10шт.

16

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

10шт.

17

100247C1

GROMMET

4шт.

18

108606C91

CYLINDER

ASSY, 3 x 12 hydraulic, see cyl, 1 for components

2шт.

62581C91

SEAL KIT

cylinder o-ring and seal service

1шт.

19

113978C93

CYLINDER

ASSY, 3-1/2 x 12 in. two stage hydraulic, see cyl, 1 for components

2шт.

63498C91

SEAL PACKAGE

KIT, cylinder o-ring and seal service

1шт.

20

STRAP, locking, discontinued for service

4шт.

21

25391R1

FITTING

1/4 str lub

2шт.

22

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 hyd 37 deg flared tube 90 deg swivel

2шт.

23

128939C1

TUBE

lower

1шт.

24

128940C1

TUBE, upper

1шт.

25

9403178

CROSS, 5/8 C-Z hyd flared tube

2шт.

26

128948C2

TUBE

ASSY, front left, includes ref. no. 27

1шт.

27

117966

GROMMET,5/8" ID x 1 11/64" x .188"

5/8 x 1-11/64 x 7/16 N/C rub

1шт.

28

128949C2

TUBE

ASSY, rear left, includes ref. no. 27

1шт.

29

128950C1

TUBE ASSY, front right, includes ref. no. 27

1шт.

30

128951C1

TUBE ASSY, rear right, includes ref. no. 27

1шт.

31

128954C1

SUPPORT, tube

1шт.

32

128953C1

ANGLE, hyd tube, support

4шт.

33

58025C1

BOLT, U

5шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

34

128874C1

UNION

restrictor

2шт.

35

9402788

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

7/8-14 znd 37 deg hyd flared tube

2шт.
