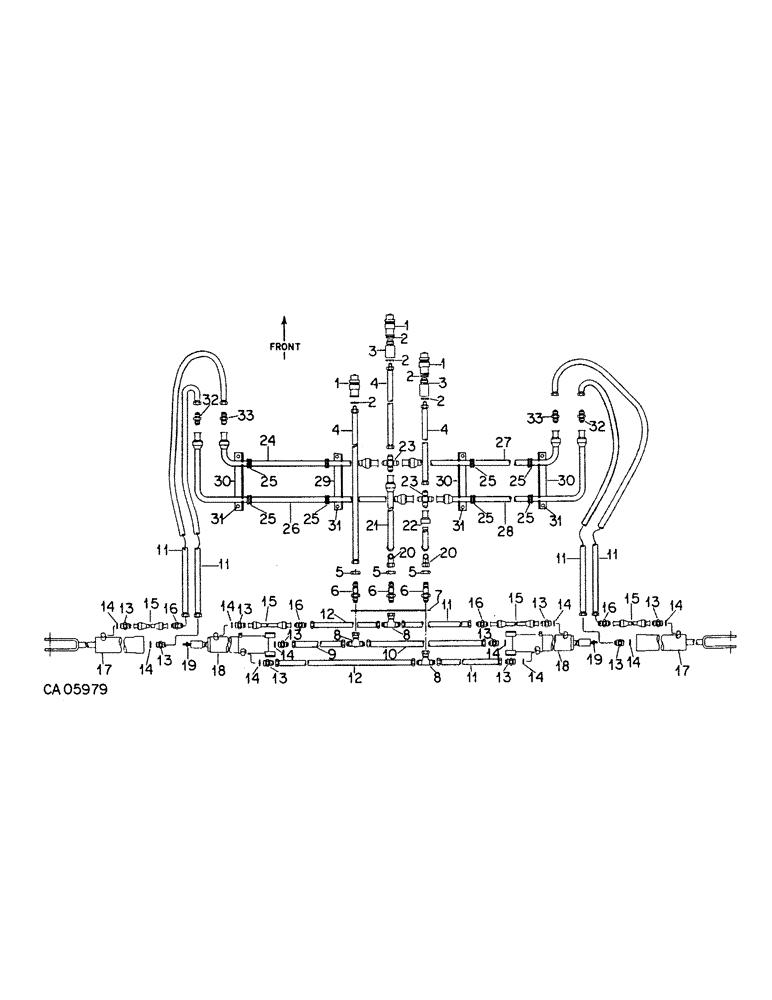

Запчасти Case IH 133 (A-14) - HYDRAULIC CONNECTIONS, UNITS AE, AF & AG, MACHINES BUILT UP (08) - HYDRAULICS

1

544787R91

COUPLING, BREAK AWAY

COUPLER, male

3шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 in. OD. tube

5шт.

3

493960R91

VALVE

ASSY, drop retarding

2шт.

4

541629R1

HOSE

46 in. hydraulic

3шт.

5

9403295

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, 7/8-14 znd bulkhead lock

3шт.

6

9403256

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

UNION, 7/8-14 deg hyd flared tube bulkhead

3шт.

7

119984C1

BAR

hyd hose plate

1шт.

8

9410308

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

7/8-14 znd 37 deg hyd flared tube swivel

3шт.

9

100383C1

HOSE

59 in.

1шт.

10

100281C1

HOSE

75 in.

1шт.

11

100384C1

HOSE

65 in.

6шт.

12

119719C1

HOSE

79 in.

2шт.

13

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 znd 37 deg hyd flared tube short swivel

10шт.

14

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

10шт.

15

100303C1

HYD TUBE,322.6 mm Length

TUBE ASSY, hyd

4шт.

16

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 znd 37 deg hyd, flared tube

4шт.

17

108606C91

CYLINDER

ASSY, 3 x 12 hyd, see cyl, 1 for components

2шт.

62581C91

SEAL KIT

cylinder o-ring and seal service

2шт.

18

113978C93

CYLINDER

ASSY, 3-1/2 x 12 in. two stage hydraulic, see cyl, 1 for components

2шт.

63498C91

SEAL PACKAGE

KIT, cylinder o-ring and seal service

1шт.

19

25391R1

FITTING

1/4 str lub

2шт.

20

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 hyd 37 deg flared tube 90 deg swivel

2шт.

21

128939C1

TUBE

lower

1шт.

22

128940C1

TUBE, upper

1шт.

23

9403178

CROSS, 5/8 C-Z hyd flared tube

2шт.

24

128948C2

TUBE

ASSY, front left

1шт.

25

117966

GROMMET,5/8" ID x 1 11/64" x .188"

no. 10

8шт.

26

128949C2

TUBE

ASSY, rear left

1шт.

27

128950C1

TUBE ASSY, front right

1шт.

28

128951C1

TUBE ASSY, rear right

1шт.

29

128954C1

SUPPORT, tube

1шт.

30

128953C1

ANGLE, hyd tube

3шт.

31

58025C1

U-BOLT

4шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

32

128874C1

UNION

restrictor

2шт.

33

9402788

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

7/8-14 znd 37 deg hyd flared tube

2шт.
