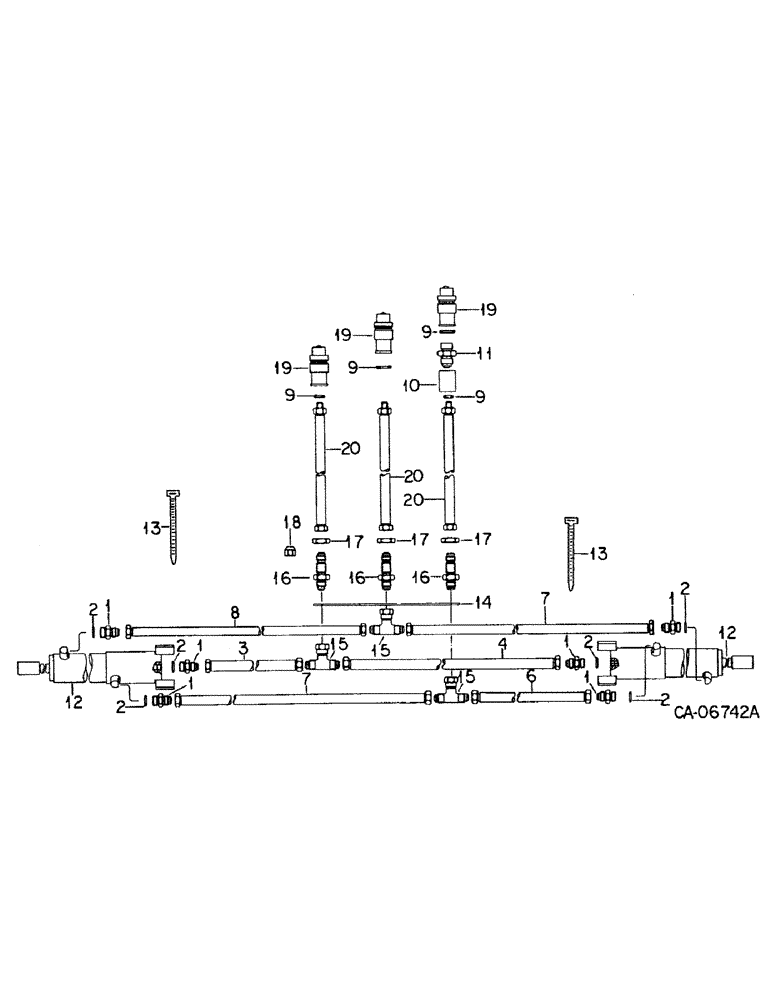

Запчасти Case IH 133 (A-12) - HYDRAULIC CONNECTIONS, UNITS Z THROUGH AD, AM, AND AU (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
9410203
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
CONNECTOR, 3/4-16 znd 37 deg hyd flared tube short swivel
6шт.
3
100383C1
HOSE
59 in. hyd, units AA, AB, AD & AN
1шт.
3
113374C1
HOSE
50 in. hyd, units Z, AC, AM and AU
1шт.
4
100384C1
HOSE
65 in. hyd, units AC, AM, Z and AU
1шт.
4
100281C1
HOSE
75 in. hyd, units AA, AB, AC, AD & AN
1шт.
5
(Not used this application)
1шт.
6
100417C1
HOSE
55 in. hyd unit Z, AC, AM and AU
1шт.
6
100384C1
HOSE
65 in., units AA, AB, AD & AN
1шт.
7
119743C1
HOSE
69 in. hyd, Units Z, AC, AM and AU
1шт.
7
119719C1
HOSE
79 in. hyd, units AA, AB, AD, & AN
1шт.
8
119719C1
HOSE
79 in. hyd, replaces 141198C1, units Z, AC, AM abd AU
1шт.
8
141200C1
HOSE
92 in. hyd, units AA, AB, AD, & AN
1шт.
9
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
5/8 OD tube
4шт.
10
141462C1
UNION
REDUCER
1шт.
11
141463C1
UNION
RESTRICTOR
1шт.
12
113978C93
CYLINDER
ASSY, 3-1/2 x 12 in. two stage hydraulic
2шт.
63498C91
SEAL PACKAGE
KIT, cylinder o-ring and seal service
1шт.
13
STRAP, plastic, discontinued for service, units Z, AA thru AD, AM, AN and AU
1шт.
14
119984C1
BAR
hyd hose, units Z AA thru AD, AM, AN and AU
1шт.
15
9410308
TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br
7/8-14 znd 37 deg hyd flared tube swivel, units Z, AA thru AD, AM, AN and AU
3шт.
16
9403256
FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree
UNION, 7/8-14 znd 37 deg hyd flared tube bulkhead, units Z, AA thru AD, AM, AN and AU
3шт.
17
9403295
BHD LOCK NUT,Blkhd, 7/8"-14
NUT, 7/8-14 znd bulkhead lock, units Z, AA thru AD, AM, AN and AU
3шт.
18
9403373
CAP,37 Degree, 7/8"-14
7/8-14 hyd 37 deg flared tube, units Z, AA thru AD, AM, AM and AU
3шт.
19
544787R91
COUPLING, BREAK AWAY
COUPLER, male
3шт.
20
541629R1
HOSE
46 in. hydraulic, units Z, AA thru AD, AM & AN
3шт.
Выбрано товаров: 26
