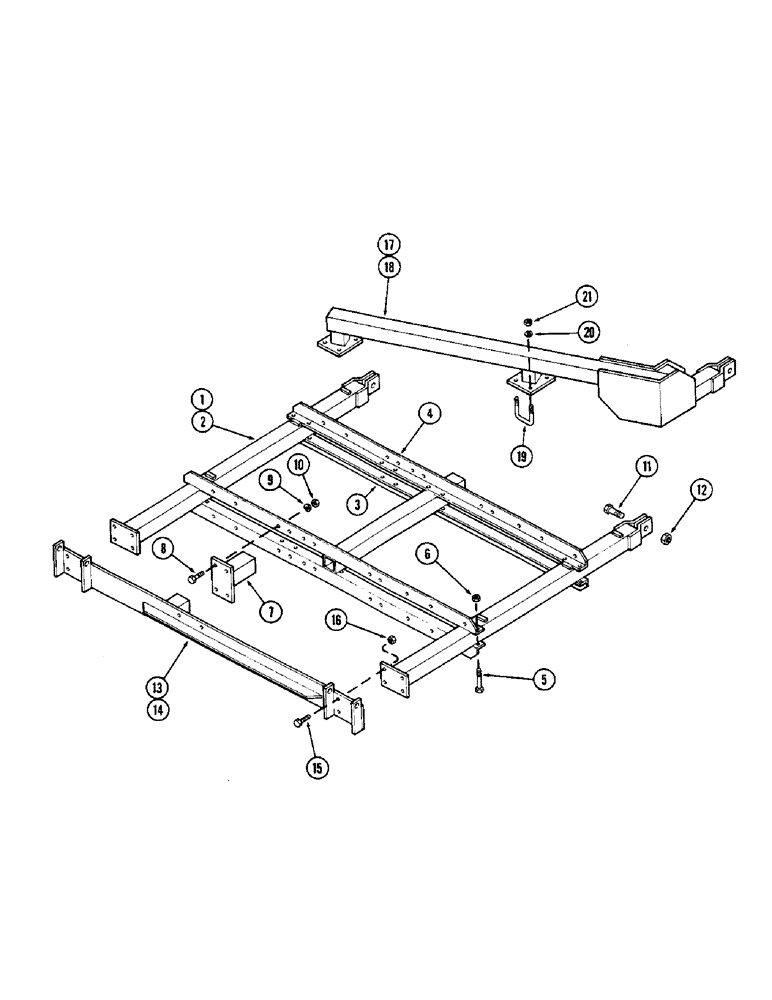

Запчасти Case IH 1300W (16) - WING FRAMES, 22 TO 30 FOOT (6.7 TO 9.1 M)

1

T56718

FRAME ASSEMBLY - wing RH

1шт.

2

T56719

FRAME ASSEMBLY - wing LH

1шт.

3

T56715

ANGLE - short RH

2шт.

4

T56716

ANGLE - short LH

2шт.

5

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- 1/2 x 4" NC hex (Grade 5)

24шт.

6

131-1182

LOCK NUT,1/2"-13, GA

NUT - lock 1/2" NC hex

24шт.

7

T56942

EXTENSION - 6" (152.4 MM)

2шт.

8

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

8шт.

9

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

10

129-107

NUT,5/8"-11, G5

8шт.

11

113-925

BOLT,Hex, 1" - 8 x 3", Gr 5

- 1 x 3" NC hex (Grade 5)

6шт.

12

131-163

LOCK NUT,1"-8, GA

NUT - lock 1" NC hex

6шт.

13

T56748

END BAR - right wing

1шт.

14

T56749

END BAR - left wing

1шт.

15

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

16шт.

16

131-1130

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

16шт.

17

T56739

BRACE - wing RH

1шт.

18

T56740

BRACE - wing LH

1шт.

19

T56427

U-BOLT

8шт.

20

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

21

129-107

NUT,5/8"-11, G5

16шт.
