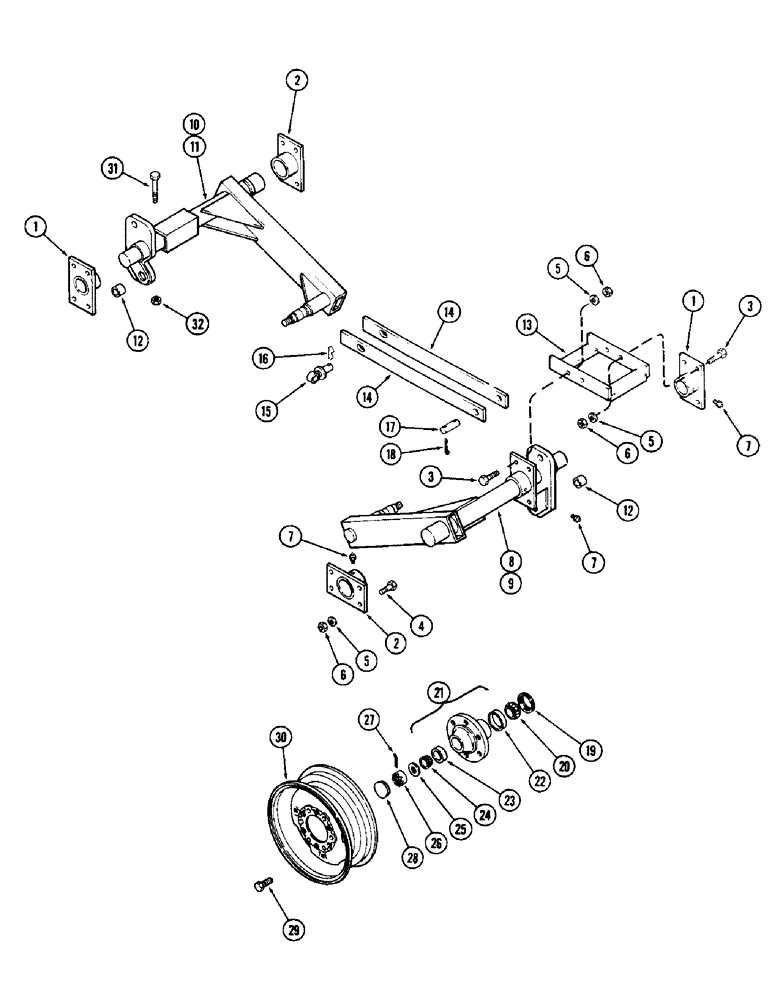

Запчасти Case IH 1300W (14) - AXLES AND WHEELS, MAIN FRAME

1

T56712

BEARING - axle

4шт.

2

T56819

BEARING - axle, heavy duty

4шт.

3

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

32шт.

4

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

5

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

40шт.

6

129-107

NUT,5/8"-11, G5

40шт.

7

219-22

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

10шт.

8

T56817

AXLE - outer RH

1шт.

9

T56818

AXLE - outer LH

1шт.

10

T56816

AXLE - inner RH

1шт.

11

T56815

AXLE - inner LH

1шт.

12

T56984

BUSHING

- tension

4шт.

13

T56824

STOP - axle

2шт.

14

T56774

STRAP - transport

4шт.

15

T56713

PIN - transport

2шт.

16

T28981

COTTER

2шт.

17

T56775

PIN

2шт.

18

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

4шт.

19

T52904

SEAL

- grease

4шт.

20

T54089

ROLLER BEARING,38 mm ID x 17.076 mm

CONE - bearing inner

4шт.

21

T54088

HUB

ASSEMBLY - with cups

4шт.

22

T54090

BEARING CUP,63 mm OD x 13.5 mm

CUP - bearing inner

1шт.

23

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing outer 2-5/16" OD (58.7 MM)

1шт.

24

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing outer 1-1/4" ID (31.8 MM)

4шт.

25

195-50

WASHER,7/8" x 2" x .165"

- 2 x 15/16" x 8 gauge

4шт.

26

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT, SLOTTED, 7/8"-14, G5, Thk

4шт.

27

132-341

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

4шт.

28

T23707

CAP

- hub

4шт.

29

T40045

WHEEL BOLT

BOLT - hub

24шт.

30

A57879

RIM

WHEEL - 15 x 8" (381.0 x 203.2 MM)

4шт.

31

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- 1/2 x 4" NC hex (Grade 5)

4шт.

32

131-1182

LOCK NUT,1/2"-13, GA

NUT - lock 1/2" NC hex

4шт.
