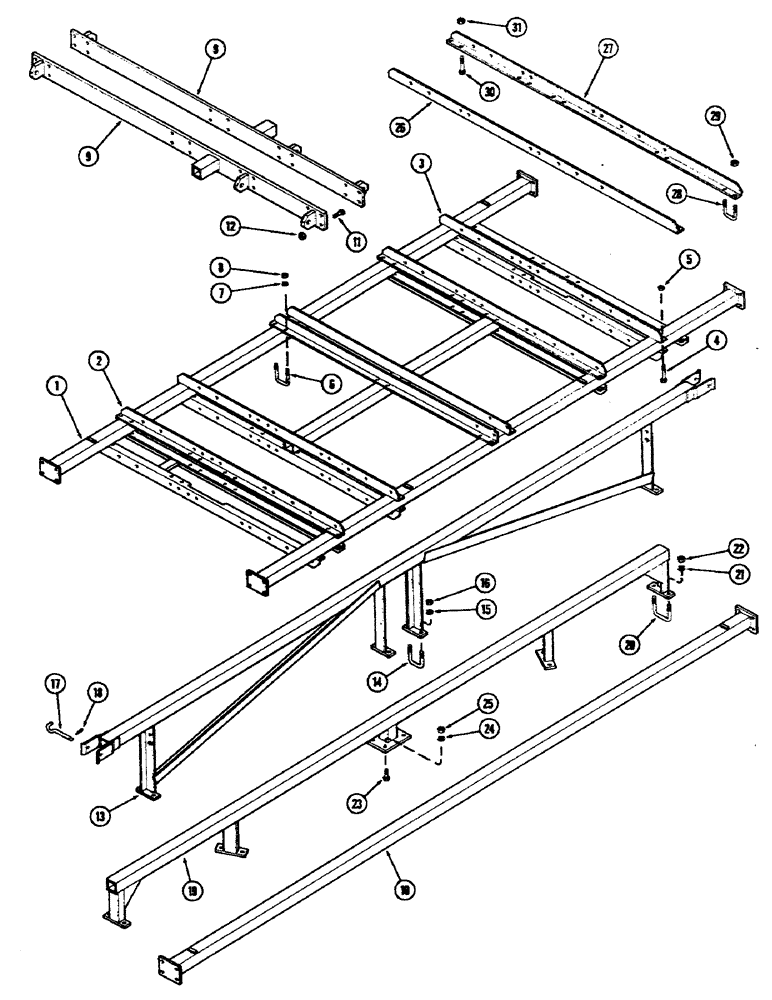

Запчасти Case IH 1300W (12) - MAIN FRAME, 42-1/2 TO 51 FOOT (13.0 TO 15.6 M)

1

T56794

FRAME ASSEMBLY - main

1шт.

2

T56715

ANGLE - short RH

1шт.

3

T56716

ANGLE - short LH

1шт.

4

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- 1/2 x 4" NC hex (Grade 5)

20шт.

5

131-1182

LOCK NUT,1/2"-13, GA

NUT - lock 1/2" NC hex

20шт.

6

T56427

U-BOLT

U BOLT

2шт.

7

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

129-107

NUT,5/8"-11, G5

4шт.

9

T56751

END BAR

2шт.

10

T56803

ANGLE - frame

1шт.

11

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

24шт.

12

131-1130

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

24шт.

13

T56805

STOP - wing

1шт.

14

T56427

U-BOLT

4шт.

15

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

16

129-107

NUT,5/8"-11, G5

8шт.

17

T56883

PIN - clevis

2шт.

18

T28981

COTTER

2шт.

19

T56804

BRACE - frame

1шт.

20

T56427

U-BOLT

2шт.

21

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

22

129-107

NUT,5/8"-11, G5

4шт.

23

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

4шт.

24

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

25

129-107

NUT,5/8"-11, G5

4шт.

26

T56734

ANGLE - long RH

1шт.

27

T56735

ANGLE - long LH

1шт.

28

T56881

U-BOLT

2шт.

29

131-1182

LOCK NUT,1/2"-13, GA

NUT - lock 1/2" NC hex

4шт.

30

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- 1/2 x 4" NC hex (Grade 5)

8шт.

31

131-1182

LOCK NUT,1/2"-13, GA

NUT - lock 1/2" NC hex

8шт.
