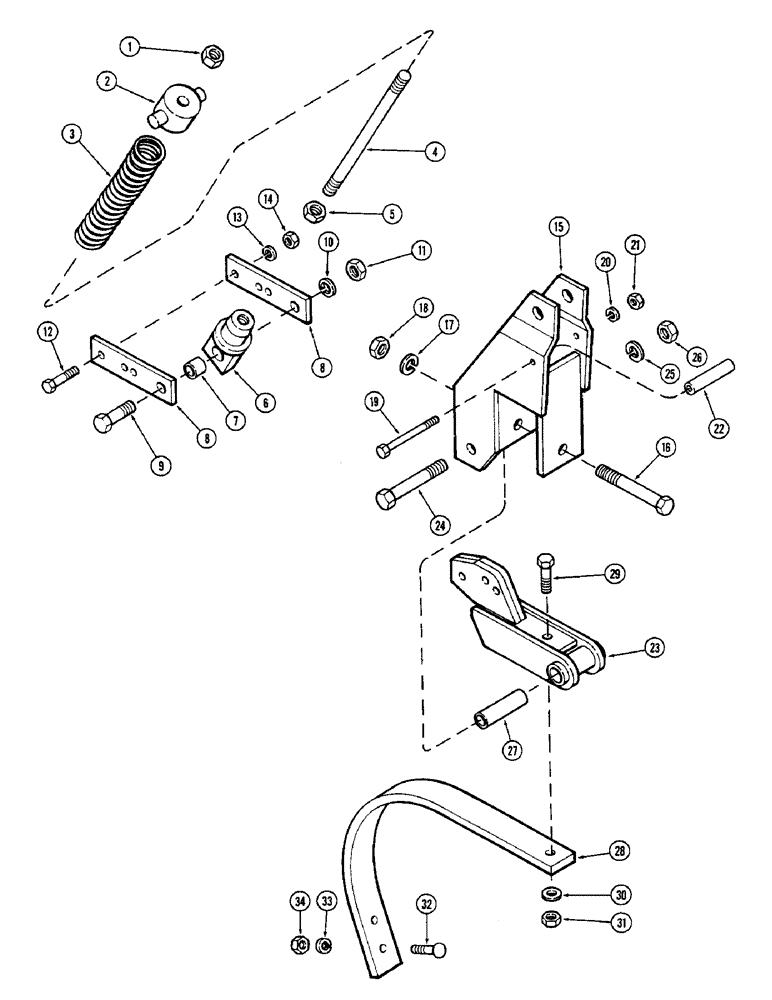

Запчасти Case IH 1300W (64) - HEAVY DUTY SHANK

1

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

1шт.

2

T52956

PIVOT

SWIVEL

1шт.

3

T52955

SPRING

- pressure

1шт.

4

T52951

ROD

- pressure

1шт.

5

425-1410

JAM NUT,Jam, 5/8"-11, G5

- 5/8" NC hex

1шт.

6

T52957

GUIDE

- spring

1шт.

7

T52953

BUSHING

1шт.

8

T52949

LEVER

- adjusting

2шт.

9

113-668

BOLT - 5/8 x 2" NC hex (Grade 5) Hex, 5/8"-11 x 2", G5

1шт.

10

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

11

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

1шт.

12

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

15

T56822

BRACKET - shank

1шт.

16

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

17

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

18

129-107

NUT,5/8"-11, G5

1шт.

19

113-18

BOLT,Hex, 1/4" - 20 x 3-3/4", Gr 5

- 1/4 x 3-3/4" NC hex (Grade 5)

1шт.

20

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

21

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

22

T52950

SPACER

1шт.

23

T52948

HOLDER

- shank

1шт.

24

T52959

BOLT - 5/8 x 4-1/8" NC hex

1шт.

25

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

26

131-1130

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

1шт.

27

T52952

BUSHING

1шт.

28

T52954

SPRING

LEAF SPRING

1шт.

29

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

30

196-15

WASHER,17/32" x 1 1/6" x .134"

- 1 x 1/2" x 10 gauge

1шт.

31

131-912

LOCK NUT,Flg, 1/2"-13

NUT - lock 1/2" NC hex

1шт.

32

118-138

PLOW BOLT,3/8"-16 x 1 1/4", G5

BOLT - plow 3/8 x 1-1/4" NC (Grade 2)

2шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

34

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
